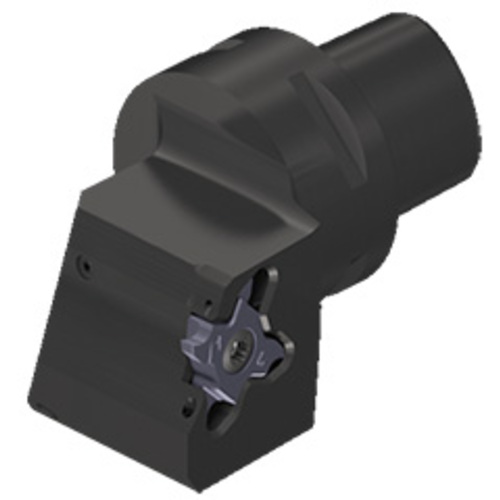

C4STCL27050-18-CHP
Parting Off Holder; 2.913″ OAL × 0.013″ CW Min. × 1/8″ CW Max. × 0.138″ Max Depth ; Steel

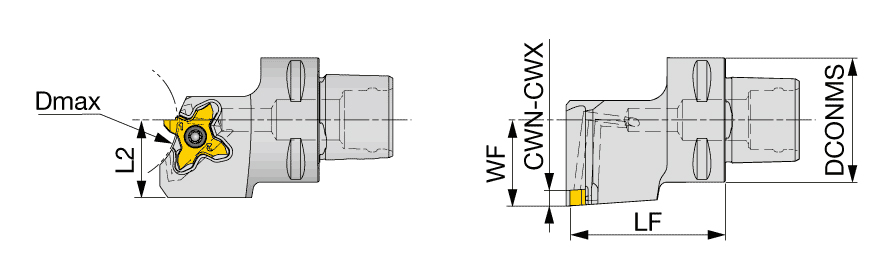

| Cutting Width Minimum (CWN) | 0.013″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.236″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 2.913″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.138″ | Insert Seat Size Code (SSC) | 18 |
| Application | | External grooving | Face contact interface | | Functional Width (WF) | 1.063″ |
| Body Material | Steel | Tool Assembly Length (LTA) | 1.968″ |
Product Features
| Family Description | TungCap External grooving and threading toolholder with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Use the right hand toolholders (STCR...) with the right hand inserts (TC*18R...). Use the left hand toolholders (STCL...) with the left hand inserts (TC*18L...). Applicable for 14 MPa coolant For Dmax of C4STCR/L27050 18 CHP, click on "More Info". |
Shipping Info
Package Weight
0.000
Related Documentation

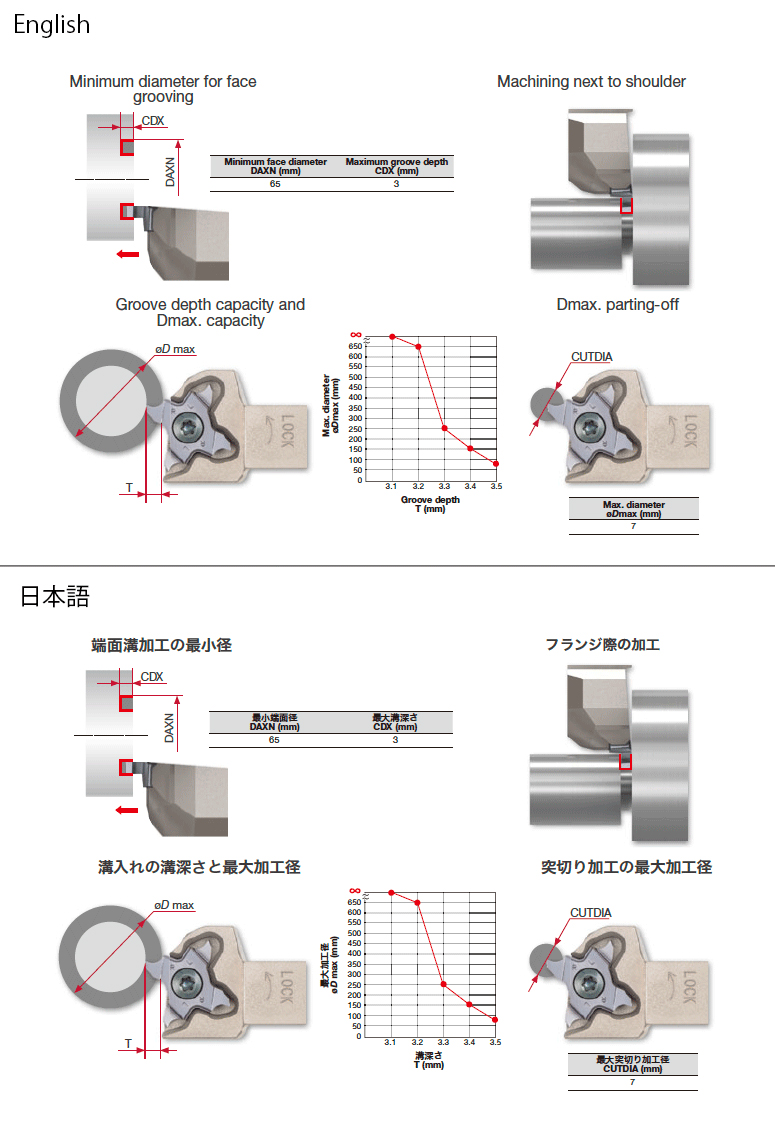

For C4STCR/L27050-18-CHP, Dmax varies according to the grooving depth required.
