CGP45-4D

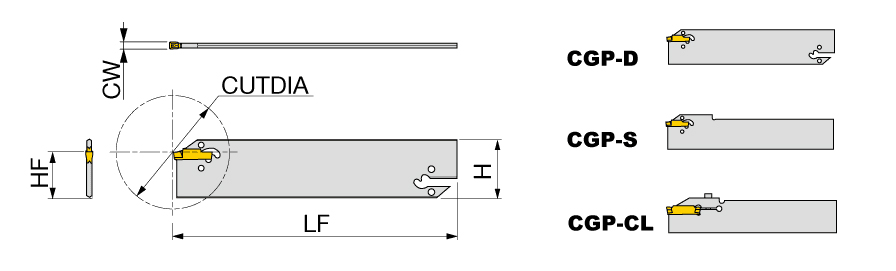

Parting Off Holder; 5.906″ OAL × 0.138″ CW Min. × 0.177″ CW Max. × 2.362″ Max Depth × 1-1/2″ OAH ; Steel
| Shank Height (H) | 1.772″ | Body Material | Steel |
| Shank Width (B) | 0.126″ | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 0.126″ | Work Piece Parting Diameter Maximum (CUTDIA) | 4.724″ |
| Cutting Width Minimum (CWN) | 0.138″ | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 0.177″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.906″ | Insert Seat Size Code (SSC) | 4 |
| Cutting Depth Maximum (CDX) | 2.362″ | Functional Width (WF) | 0.157″ |
| Overall Height (OAH) | 1-1/2″ | Tool Assembly Length (LTA) | 1.356″ |
| Application | | External grooving | Parting off | |
Product Features
| Family Description | Blades for external deep grooving & parting | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.406
Related Documentation

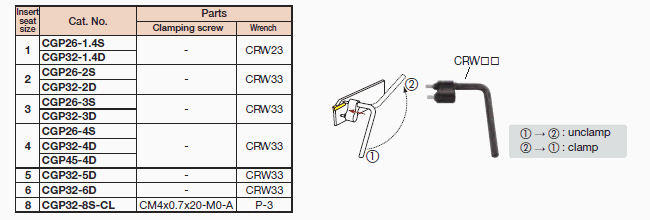

Please use single-sided inserts (e.g. SGM, SGS) in the case of grooving depth is deeper than insert length - 1.5 mm. @Wrench CRW**, should be ordered separately for CGP**-1.4S/D, -2S/D, -3S/D, -4S/D, -5D and -6D.
