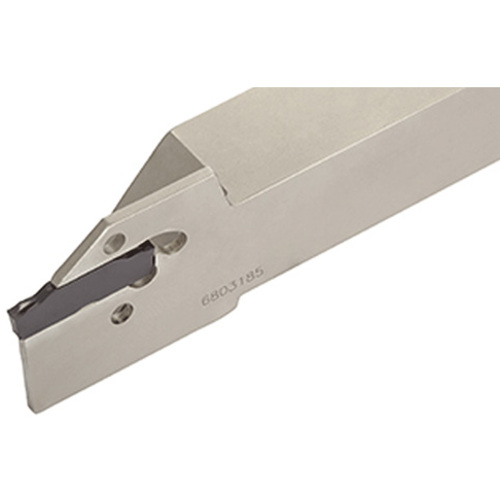

CGEL2020-4T19
Parting Off Holder; 125 mm OAL × 3.5 mm CW Min. × 4.49 mm CW Max. × 20.3 mm Max Depth × 20 mm OAH ; Steel

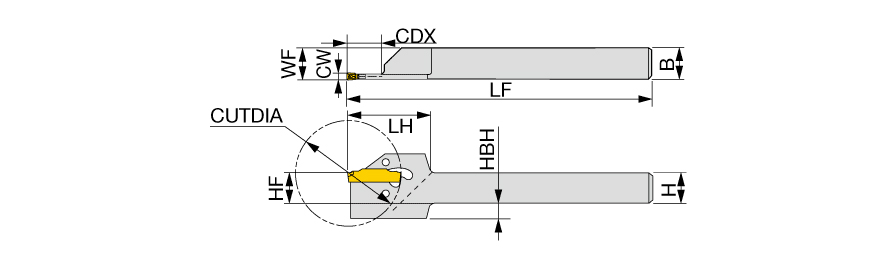

| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 3.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 55 mm |
| Cutting Width Maximum (CWX) | 4.49 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 125 mm | Measurement Type | Metric |
| Head Length (LH) | 33 mm | Insert Seat Size Code (SSC) | 4 |
| Cutting Depth Maximum (CDX) | 20.3 mm | Functional Width (WF) | 20.4 mm |
| Overall Height (OAH) | 20 mm | Tool Assembly Length (LTA) | 43 mm |
| Application | | External grooving | Parting off | |
Product Features
| Family Description | External deep grooving & parting toolholders for small lathe | Country of Origin | ISRAEL |

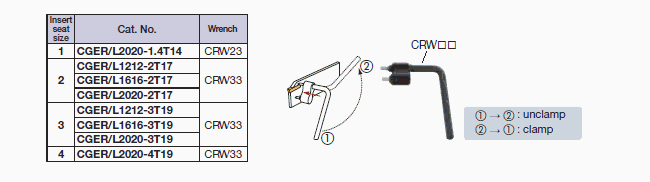

| Remarks | See applicable inserts table. Wrench, CRW**, should be ordered separately. Insert is clamped by the elastic deformation of upper jaw. |
Shipping Info
Package Weight
0.767
