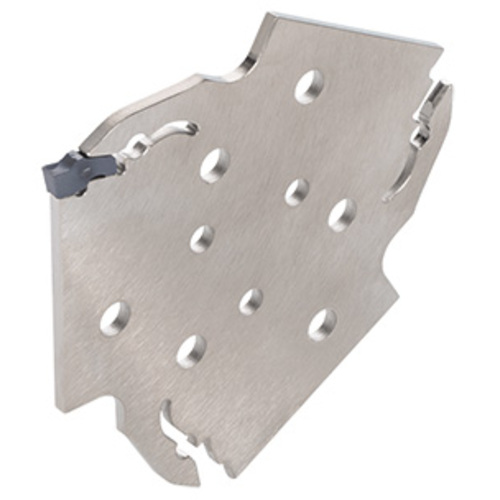

QSG120-4T

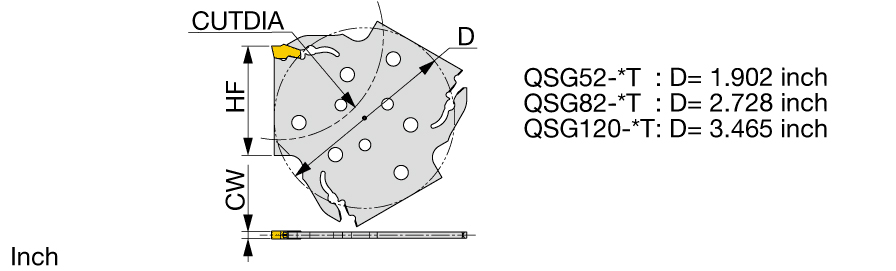

Parting Off Holder; 1.772″ OAL × 0.138″ CW Min. × 0.216″ CW Max. × 2.362″ Max Depth × 2.402″ OAH ; Steel
| Cutting Width Minimum (CWN) | 0.138″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.216″ | Work Piece Parting Diameter Maximum (CUTDIA) | 4.724″ |
| Overall Length (OAL) | 1.772″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 2.362″ | Measurement Type | Inch |
| Overall Height (OAH) | 2.402″ | Insert Seat Size Code (SSC) | 4 |
| Application | | External grooving | Parting off | | Tool Assembly Length (LTA) | 1.772″ |
| Body Material | Steel |
Product Features
| Family Description | Parting-off and external grooving blade | Country of Origin | JAPAN |
