QSP32-2D
Parting Off Holder; 5.945″ OAL × 0.059″ CW Min. × 0.098″ CW Max. × 1.299″ Max Depth × 0.976″ OAH ; Steel

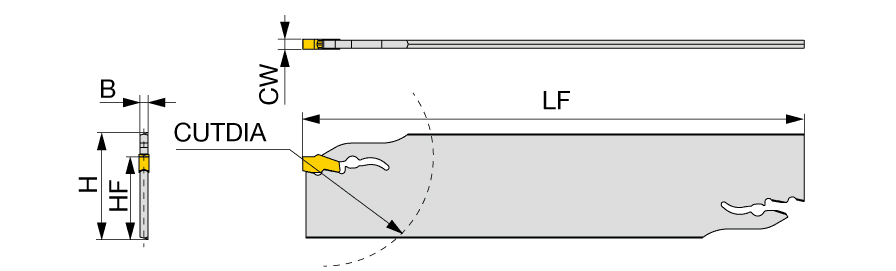

| Shank Height (H) | 1.26″ | Application | | External grooving | Parting off | |
| Shank Width (B) | 0.071″ | Body Material | Steel |
| Body Width (WB) | 0.071″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 0.059″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.598″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 5.945″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 1.299″ | Insert Seat Size Code (SSC) | 2 |
| Overall Height (OAH) | 0.976″ | Functional Width (WF) | 0.079″ |
Product Features
| Family Description | Blade for external deep grooving and parting | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
