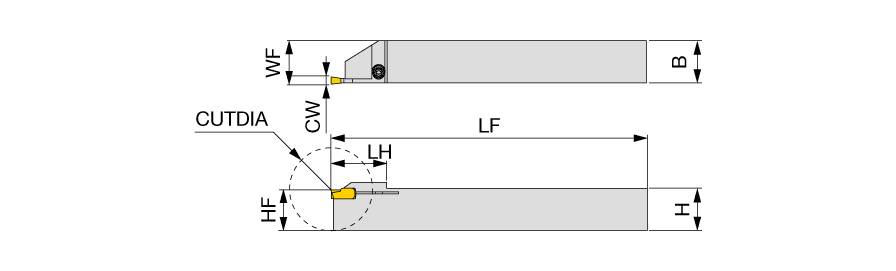

JCGSSL1010-20
Parting Off Holder; 125 mm OAL × 10 mm Max Depth × 10 mm OAH ; Steel
| Shank Height (H) | 10 mm | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 10 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 20 mm |
| Overall Length (OAL) | 125 mm | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 15 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 10 mm | Insert Seat Size Code (SSC) | 20 |
| Overall Height (OAH) | 10 mm | Functional Width (WF) | 10.2 mm |
| Application | | External grooving | | Tool Assembly Length (LTA) | 25 mm |
| Body Material | Steel |
Product Features
| Family Description | External grooving toolholders for small lathe | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.249
