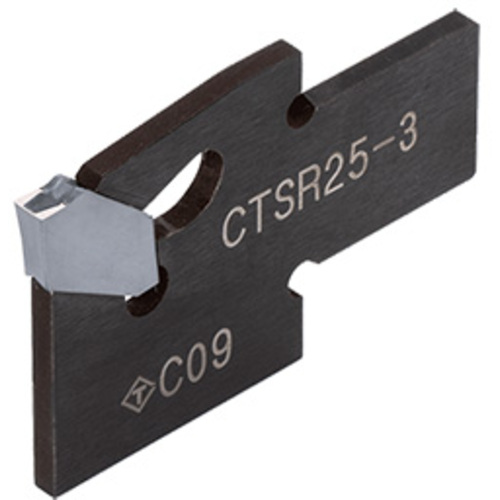

CTSR25-3
Parting Off Holder; 42 mm OAL × 25 mm Max Depth ; Steel
| Shank Width (B) | 2.2 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 2.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 50 mm |
| Overall Length (OAL) | 42 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 25 mm | Measurement Type | Metric |
| Application | | Parting off | | Insert Seat Size Code (SSC) | 3 |
| Body Material | Steel | Functional Width (WF) | 3 mm |
Product Features
| Family Description | Blades of CTS for parting | Country of Origin | Japan |

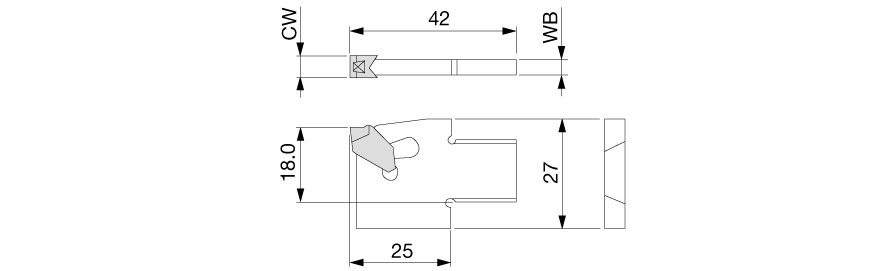

| Remarks | Refer to the assembly drawing of "CTBR/L" regarding the dimensions. |
Shipping Info
Package Weight
0.115
