CTH32-5
Parting Off Holder; 30 mm OAL × 50 mm Max Depth × 30 mm OAH ; Steel

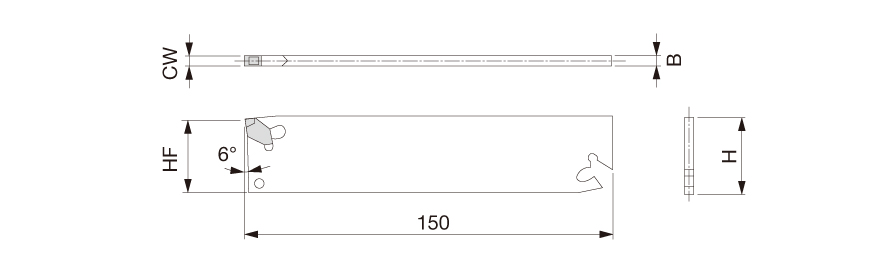

| Shank Height (H) | 31.7 mm | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 4.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 100 mm |
| Overall Length (OAL) | 30 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 50 mm | Measurement Type | Metric |
| Overall Height (OAH) | 30 mm | Insert Seat Size Code (SSC) | 5 |
| Application | | Parting off | | Functional Width (WF) | 5 mm |
| Body Material | Steel | Tool Assembly Length (LTA) | 60 mm |
Product Features
| Family Description | Blades for parting | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.414
