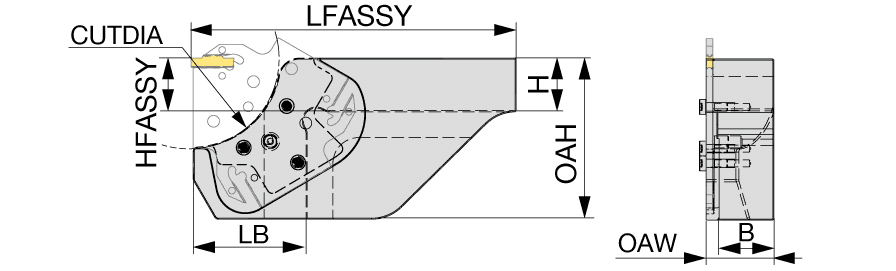

| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1.02″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.228″ |
| Overall Length (OAL) | 5.961″ | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 2.953″ | Measurement Type | Inch |
| Application | | Parting off | | Tool Assembly Length (LTA) | 0.722″ |
Product Features

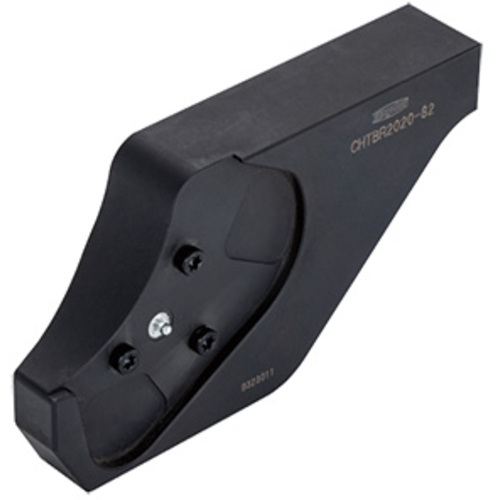

| Family Description | Tool block for CHGP and QSG blades | Country of Origin | JAPAN |
| Remarks | The blade clamping screw heads protrude out for as much as 3.1 mm over the insert cutting edge point. Maintain the clearance from the chucking device to avoid interference. |
