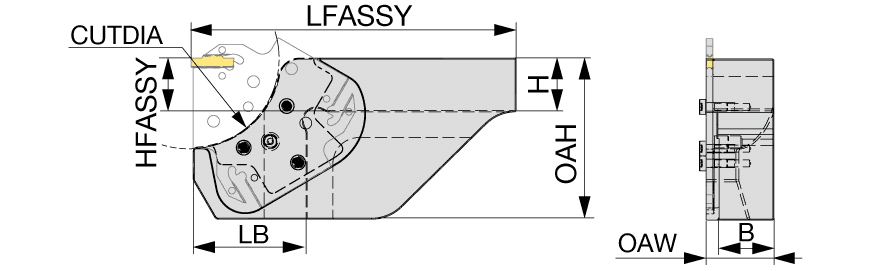

| Shank Height (H) | 20 mm | Body Material | Steel |

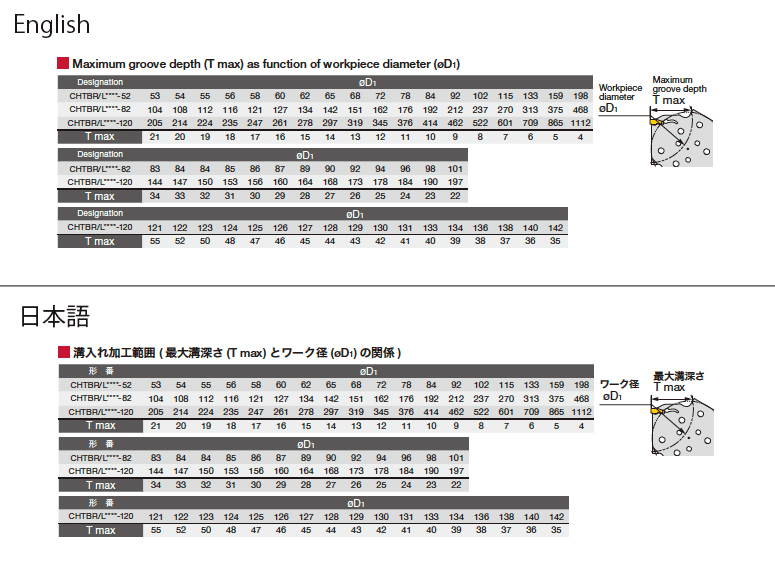

| Shank Width (B) | 20.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm |
| Overall Length (OAL) | 139 mm | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 75 mm | Measurement Type | Metric |
| Application | | Parting off | | Tool Assembly Length (LTA) | 18.35 mm |
Product Features
| Family Description | Tool block for CHGP and QSG blades | Country of Origin | JAPAN |
| Remarks | The blade clamping screw heads protrude out for as much as 3.1 mm over the insert cutting edge point. Maintain the clearance from the chucking device to avoid interference. |
Shipping Info
Package Weight
0.000
