CHGP52-2T
Parting Off Holder; 0.99″ OAL × 0.059″ CW Min. × 0.098″ CW Max. × 1.024″ Max Depth × 1.063″ OAH ; Steel
| Cutting Width Minimum (CWN) | 0.059″ | Tool Type | Blades and adapters for Parting & Grooving |

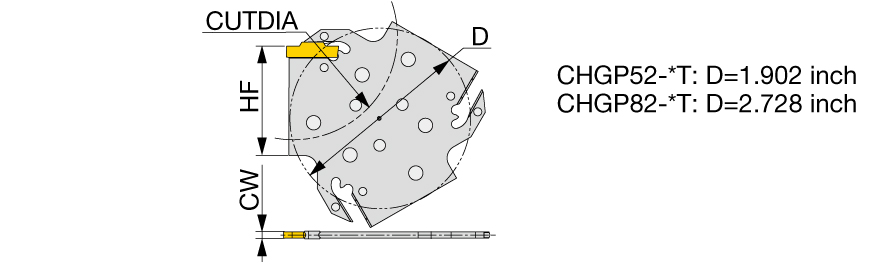

| Cutting Width Maximum (CWX) | 0.098″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.047″ |
| Overall Length (OAL) | 0.99″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 1.024″ | Measurement Type | Inch |
| Overall Height (OAH) | 1.063″ | Insert Seat Size Code (SSC) | 2 |
| Application | | External grooving | Parting off | | Tool Assembly Length (LTA) | 0.99″ |
| Body Material | Steel |
Product Features
| Family Description | Parting-off and external grooving blade | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
Related Documentation
Please use single-sided inserts (e.g. SGM, SGS) in the case of grooving depth is deeper than insert length - 1.5 mm. @Wrench CRW** should be ordered separately.
