STCR16-38
Parting Off Holder; 5-1/2″ OAL × 0.059″ CW Min. × 0.157″ CW Max. × 0.394″ Max Depth × 1″ OAH ; Steel

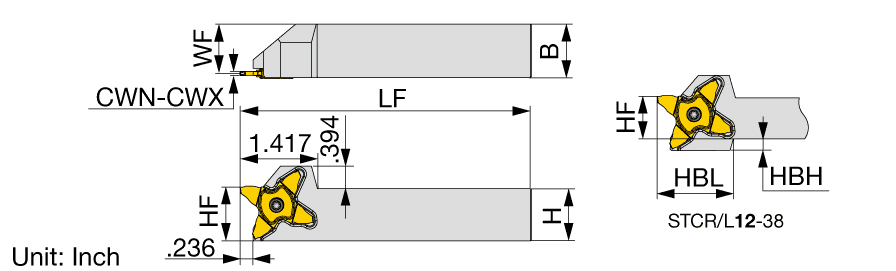

| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.059″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.787″ |
| Cutting Width Maximum (CWX) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5-1/2″ | Measurement Type | Inch |
| Head Length (LH) | 1.417″ | Insert Seat Size Code (SSC) | 38 |
| Cutting Depth Maximum (CDX) | 0.394″ | Functional Width (WF) | 0.92″ |
| Overall Height (OAH) | 1″ | Tool Assembly Length (LTA) | 1.811″ |
| Application | | External grooving | Parting off | |
Product Features
| Family Description | External grooving and parting toolholder | Country of Origin | Japan |
