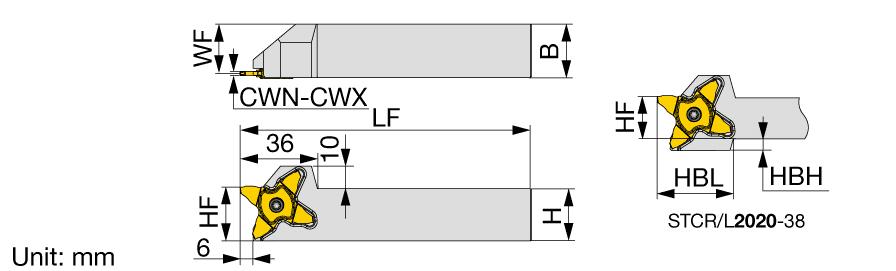

STCL2525-38
Parting Off Holder; 135 mm OAL × 1.5 mm CW Min. × 4 mm CW Max. × 10 mm Max Depth × 25 mm OAH ; Steel
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 20 mm |
| Cutting Width Maximum (CWX) | 4 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 135 mm | Measurement Type | Metric |
| Head Length (LH) | 36 mm | Insert Seat Size Code (SSC) | 38 |
| Cutting Depth Maximum (CDX) | 10 mm | Functional Width (WF) | 23.1 mm |
| Overall Height (OAH) | 25 mm | Tool Assembly Length (LTA) | 46 mm |
| Application | | External grooving | Parting off | |
Product Features
| Family Description | External grooving and parting toolholder | Country of Origin | JAPAN |
