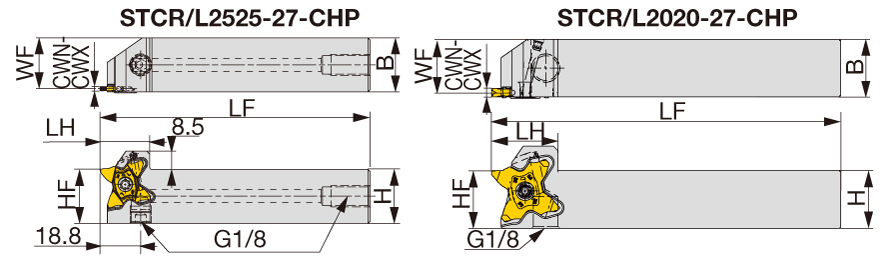

STCR2020-27-CHP

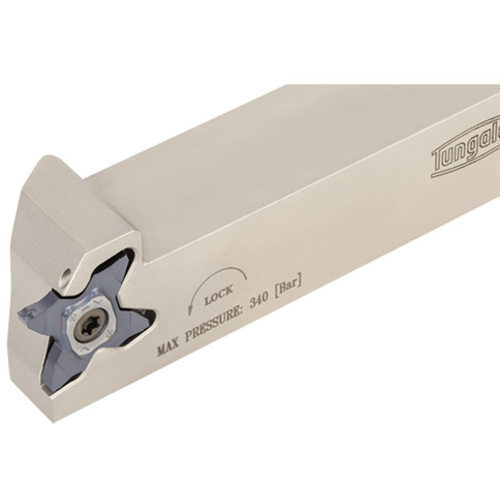

Parting Off Holder; 120 mm OAL × 0.5 mm CW Min. × 3.18 mm CW Max. × 6.4 mm Max Depth × 20 mm OAH ; Steel
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 11.8 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Head Length (LH) | 23 mm | Insert Seat Size Code (SSC) | 27 |
| Cutting Depth Maximum (CDX) | 6.4 mm | Functional Width (WF) | 18.5 mm |
| Overall Height (OAH) | 20 mm | Tool Assembly Length (LTA) | 33 mm |
| Application | | External grooving | |
Product Features
| Family Description | Precision external grooving tool for uniquely shaped insert with 4 cutting edges, with channels for high pressure coolant. | Country of Origin | Japan |
Shipping Info
Package Weight
0.999
