JSXXL1616X09B-CHP

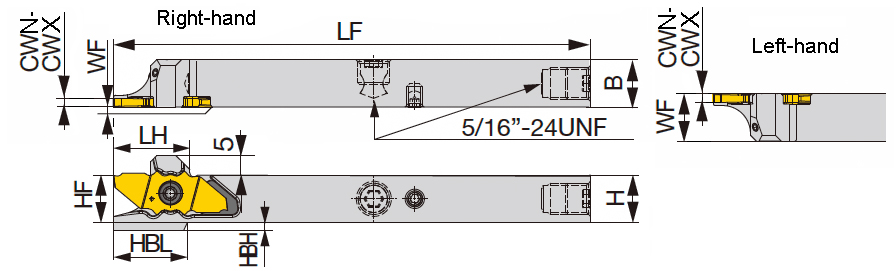

Parting Off Holder; 120 mm OAL × 0.6 mm CW Min. × 2.5 mm CW Max. × 10.5 mm Max Depth × 16 mm OAH ; Steel
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.6 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 20 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Head Length (LH) | 19.4 mm | Insert Seat Size Code (SSC) | - |
| Cutting Depth Maximum (CDX) | 10.5 mm | Functional Width (WF) | 15.8 mm |
| Overall Height (OAH) | 16 mm | Tool Assembly Length (LTA) | 29.4 mm |
| Application | | Ext Threading | External grooving | For Miniature machining | Parting off | |

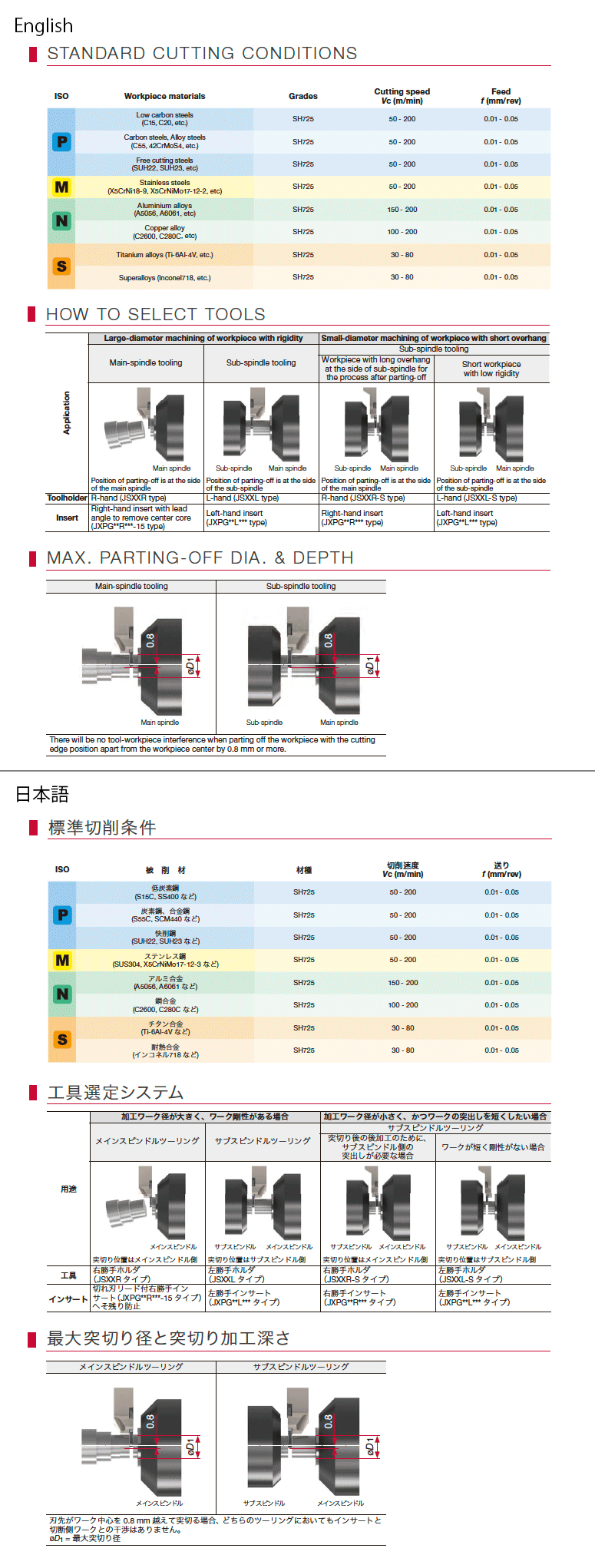

Product Features
| Family Description | Parting off tool with high pressure coolant channels, for swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | Japan |
| Remarks | When JX**12... insert is used, "LF", "LH" and "HBL" are shorter 2 mm. When JX**06... insert is used, "LF", "LH" and "HBL" are shorter 4 mm. When JX**20... insert is used, "LF", "LH" and "HBL" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping |
