JSXXL083F-CHP
Parting Off Holder; 3.39″ OAL × 0.024″ CW Min. × 0.098″ CW Max. × 0.413″ Max Depth × 1/2″ OAH ; Steel

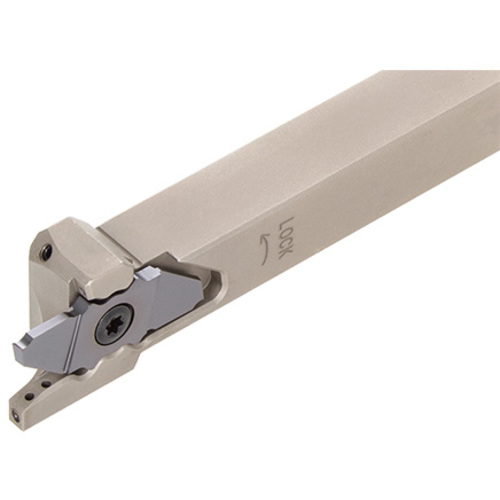

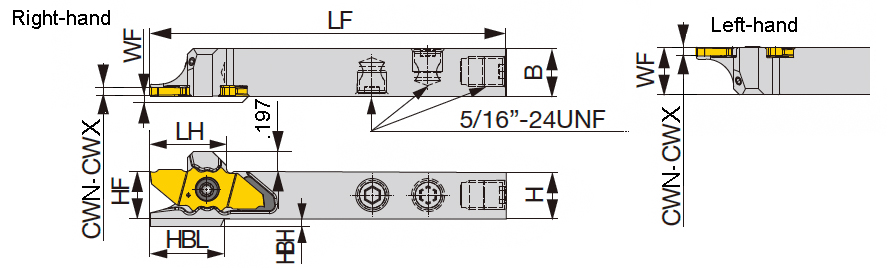

| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.024″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.787″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 3.39″ | Measurement Type | Inch |
| Head Length (LH) | 0.764″ | Insert Seat Size Code (SSC) | - |
| Cutting Depth Maximum (CDX) | 0.413″ | Functional Width (WF) | 0.492″ |
| Overall Height (OAH) | 1/2″ | Tool Assembly Length (LTA) | 1.158″ |
| Application | | Ext Threading | External grooving | For Miniature machining | Parting off | |
Product Features
| Family Description | Parting off tool with high pressure coolant channels, for swiss lathes | Country of Origin | JAPAN |
| Remarks | When JX**12... insert is used, "LF", "LH" and "HBL" are shorter 2 mm. When JX**06... insert is used, "LF", "LH" and "HBL" are shorter 4 mm. When JX**20... insert is used, "LF", "LH" and "HBL" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping |
