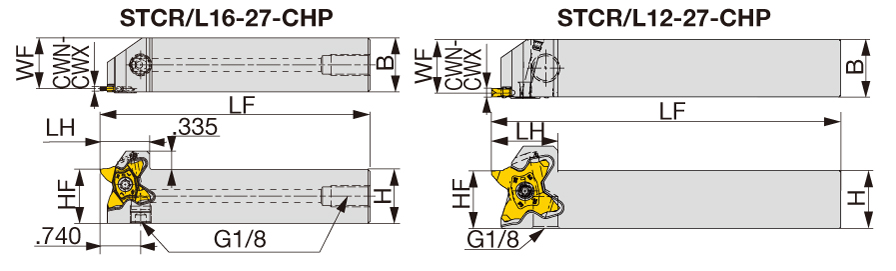

STCR16-27-CHP
Parting Off Holder; 4.92″ OAL × 0.02″ CW Min. × 1/8″ CW Max. × 0.252″ Max Depth × 1″ OAH ; Steel
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.02″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.465″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.92″ | Measurement Type | Inch |
| Head Length (LH) | 0.906″ | Insert Seat Size Code (SSC) | 27 |
| Cutting Depth Maximum (CDX) | 0.252″ | Functional Width (WF) | 0.94″ |
| Overall Height (OAH) | 1″ | Tool Assembly Length (LTA) | 1.3″ |
| Application | | External grooving | |
Product Features
| Family Description | Precision external grooving tool for uniquely shaped insert with 4 cutting edges, with channels for high pressure coolant. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
1.429
