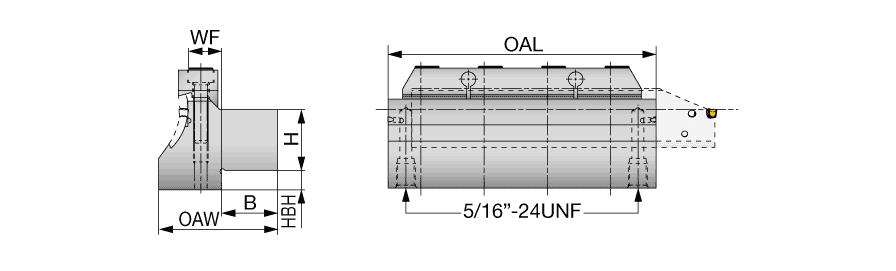

CTBU16-030-4U-CHP
Parting Off Holder; 4.331″ OAL × 0.158″ CW Min. × 0.158″ CW Max. × 1″ OAH ; Steel
| Shank Height (H) | 1″ | Minimum Bore Diameter (DMIN) | 1.181″ |
| Shank Width (B) | 0.905″ | Application | | Face grooving | |
| Cutting Width Minimum (CWN) | 0.158″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.158″ | Tool Type | TOOL BLOCK - FOR EFP BLADES |
| Overall Length (OAL) | 4.331″ | Cutting Direction (HAND) | Neutral |
| Head Length (LH) | 1.024″ | Measurement Type | Inch |
| Overall Height (OAH) | 1″ | Functional Width (WF) | 0.535″ |
Product Features
| Family Description | Tool block for EFP blades, with channels for high pressure coolant. | Country of Origin | Japan |
Shipping Info
Package Weight
2.93
