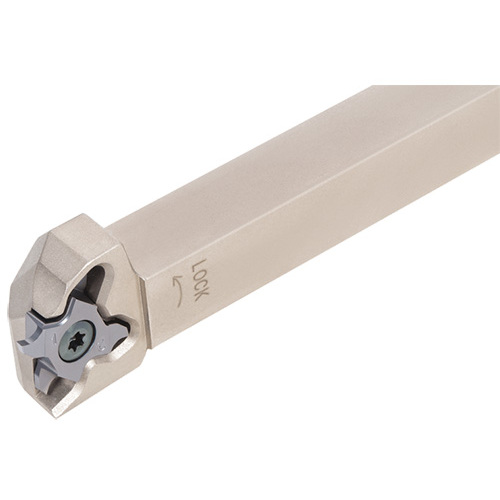

STCR12-18
Parting Off Holder; 4-3/4″ OAL × 0.013″ CW Min. × 1/8″ CW Max. × 0.138″ Max Depth × 3/4″ OAH ; Steel

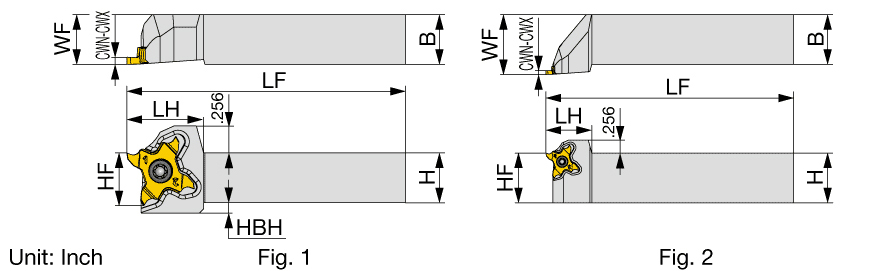

| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.013″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.236″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4-3/4″ | Measurement Type | Inch |
| Head Length (LH) | 0.9″ | Insert Seat Size Code (SSC) | 18 |
| Cutting Depth Maximum (CDX) | 0.138″ | Functional Width (WF) | 1″ |
| Overall Height (OAH) | 3/4″ | Tool Assembly Length (LTA) | 1.294″ |
| Application | | Ext Threading | External grooving | |
Product Features
| Family Description | Precision external grooving and threading tools with uniquely shaped insert for Swiss-tooling or Automatic lathes | Country of Origin | Japan |
| Remarks | The right hand insert (TC*18R***) is used for the right hand toolholders (STCR***), and the left hand insert (TC*18L***) is used for the left hand toolholders (STCL***). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.84
