STCL1616X18
Parting Off Holder; 120 mm OAL × 0.33 mm CW Min. × 3.18 mm CW Max. × 3.5 mm Max Depth × 16 mm OAH ; Steel

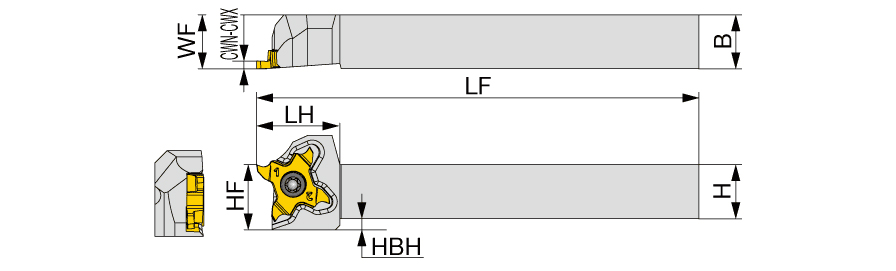

| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.33 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 6 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Head Length (LH) | 18.5 mm | Insert Seat Size Code (SSC) | 18 |
| Cutting Depth Maximum (CDX) | 3.5 mm | Functional Width (WF) | 16 mm |
| Overall Height (OAH) | 16 mm | Tool Assembly Length (LTA) | 28.5 mm |
| Application | | Ext Threading | External grooving | |
Product Features
| Family Description | Precision external grooving and threading tools with uniquely shaped insert for Swiss-tooling or Automatic lathes | Country of Origin | JAPAN |
| Remarks | The right hand insert (TC*18R***) is used for the right hand toolholders (STCR***), and the left hand insert (TC*18L***) is used for the left hand toolholders (STCL***). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.569
