JCCWSR082

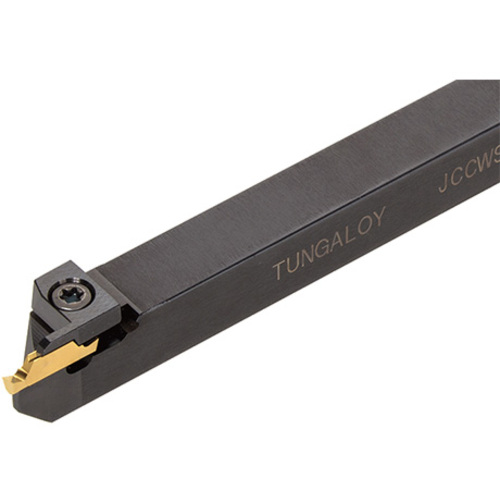

Parting Off Holder; 5″ OAL × 0.394″ Max Depth × 1/2″ OAH ; Steel

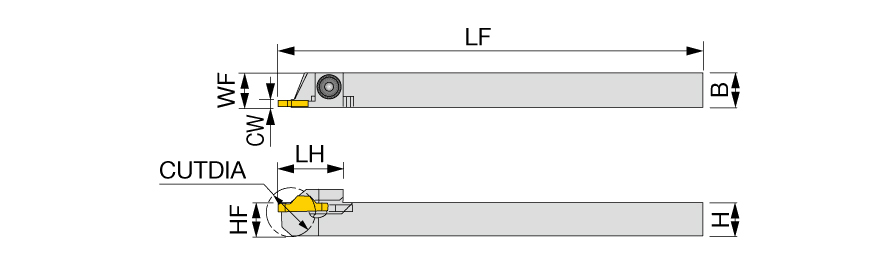

| Shank Height (H) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 1/2″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.787″ |
| Overall Length (OAL) | 5″ | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 0.748″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.394″ | Insert Seat Size Code (SSC) | 2 |
| Overall Height (OAH) | 1/2″ | Functional Width (WF) | 1/2″ |
| Application | | External grooving | | Tool Assembly Length (LTA) | 1.142″ |
| Body Material | Steel |
Product Features
| Family Description | External parting toolholders for small lathe | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
