CGP32-4D-CHP

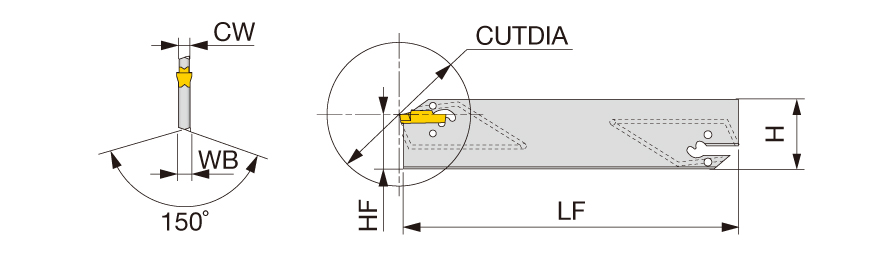

Parting Off Holder; 5.906″ OAL × 0.138″ CW Min. × 0.177″ CW Max. × 1.772″ Max Depth × 0.98″ OAH ; Steel
| Shank Height (H) | 1.26″ | Application | | External grooving | Parting off | |
| Shank Width (B) | 0.126″ | Body Material | Steel |
| Body Width (WB) | 0.126″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 0.138″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.543″ |
| Cutting Width Maximum (CWX) | 0.177″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 5.906″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 1.772″ | Insert Seat Size Code (SSC) | 4 |
| Overall Height (OAH) | 0.98″ | Tool Assembly Length (LTA) | 5.906″ |
Product Features
| Family Description | Blades for external deep grooving & parting with high pressure coolant channels | Country of Origin | Israel |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. Wrench (CRW**) should be ordered separately. |
Shipping Info
Package Weight
0
Related Documentation

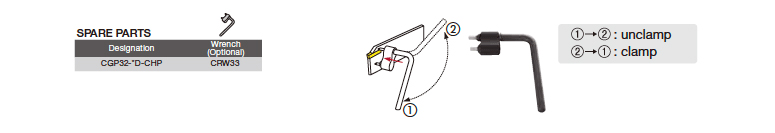

Wrench (CRW**) should be ordered separately. Insert is clamped by the elastic deformation of upper jaw.
