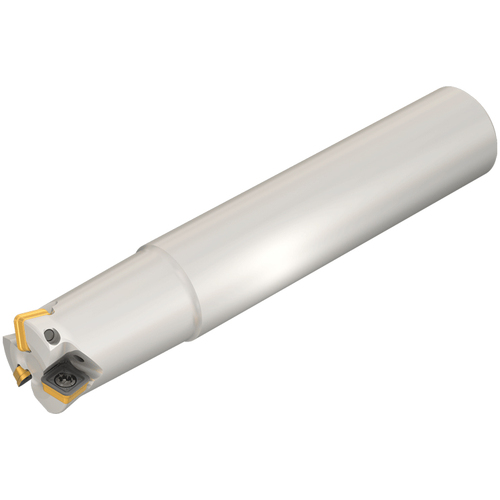

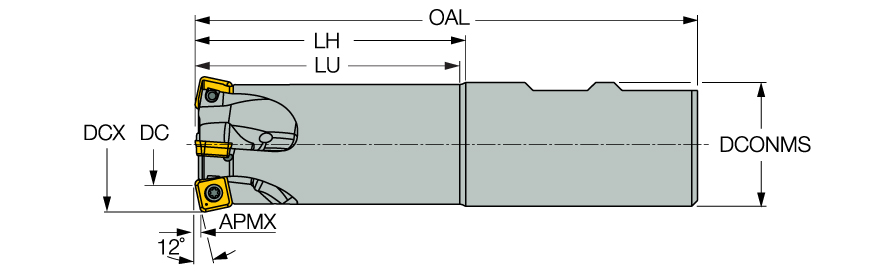

FFQ4 D.62-03-W.62-06
Indexable End Mill; 5/8″ Dia. × 0.0275″ LOC × 5/8″ Shank Dia. × 3.35″ OAL × 1-1/4″ LU ; Weldon Shank
| Cutting Diameter (DC/DCX) | 5/8″ | Head Length (LH) | 1-1/4″ |
| Cutting Diameter (DC) | 0.278″ | Functional Length (LF) | 2.397″ |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 0.0275″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.35″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 6 Degrees | Body Material | Steel |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Connection Code Machine Side (CCMS) | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 5/8″ |
| Master Insert Identification (MIID) | FFQ4 SOMT 060210T |
Product Features
| Family Description | Fast feed endmills carrying single-sided square Inserts with 4 cutting edges. | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .067 , for insert SOMW .07 with high tool overhang, the maximum depth of cut should be reduced by 50% |
Shipping Info
Package Weight
146
