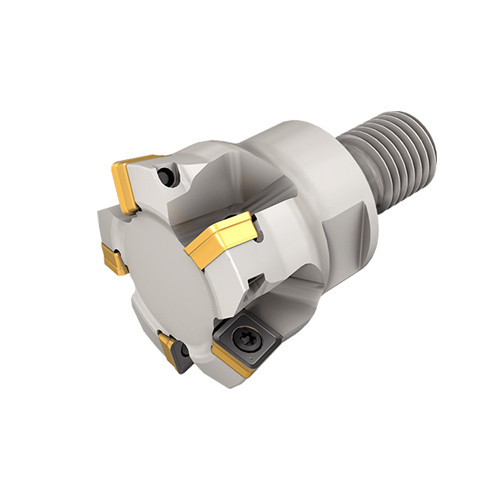

FFQ4 D25-05-M12-06
Indexable End Mill; 0.984″ Dia. × 0.0276″ LOC × 0.827″ Shank Dia. × 2.047″ OAL ; 12 Degrees
| Cutting Diameter (DC/DCX) | 0.984″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 0.638″ | Drive Size (DRVS) | 0.673″ |
| Cutting Item Count (CICT) | 5 | Torque (TQ) | 7.97 lbfxin |
| Depth of Cut Maximum (APMX) | 0.0276″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 2.047″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.827″ | Body Material | Steel |
| Master Insert Identification (MIID) | FFQ4 SOMT 060210T | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 1.181″ | Cutting Diameter Maximum (DCX) | 0.984″ |
Product Features
| Family Description | Fast feed endmills with FLEXFIT threaded adaptation carrying single-sided square Inserts with 4 cutting edges. | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .067, for insert SOMW .075 When mounting insert SOMW, APMX=.024 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
116
