FFQ4 D20-04-MMT12-06

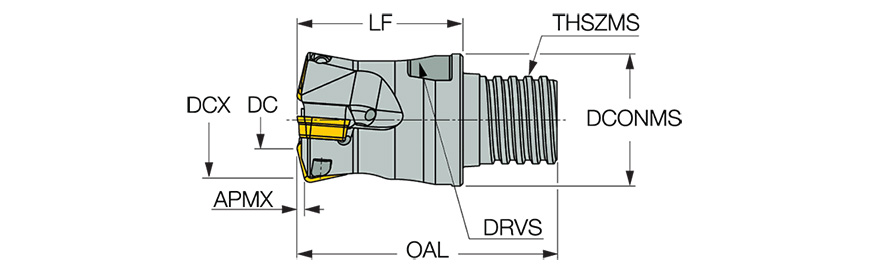

Indexable End Mill; 20 mm Dia. × 0.7 mm LOC × 18.8 mm Shank Dia. × 38.3 mm OAL ; 4 FL ; 12 Degrees
| Cutting Diameter (DC/DCX) | 20 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Diameter (DC) | 11.2 mm | Drive Size (DRVS) | 16 mm |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.7 mm | Torque (TQ) | 0.9 Nxm |
| Overall Length (OAL) | 38.3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 3.5 Degrees | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 18.8 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | FFQ4 SOMT 060210T | Body Material | Steel |
| Functional Length (LF) | 25 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Tool Type | Fast Feed Endmill | Cutting Diameter Maximum (DCX) | 20 mm |
Product Features
| Family Description | Fast feed endmills with MULTI-MASTER threaded adaptation carrying single-sided square inserts with 4 cutting edges | Country of Origin | Israel |

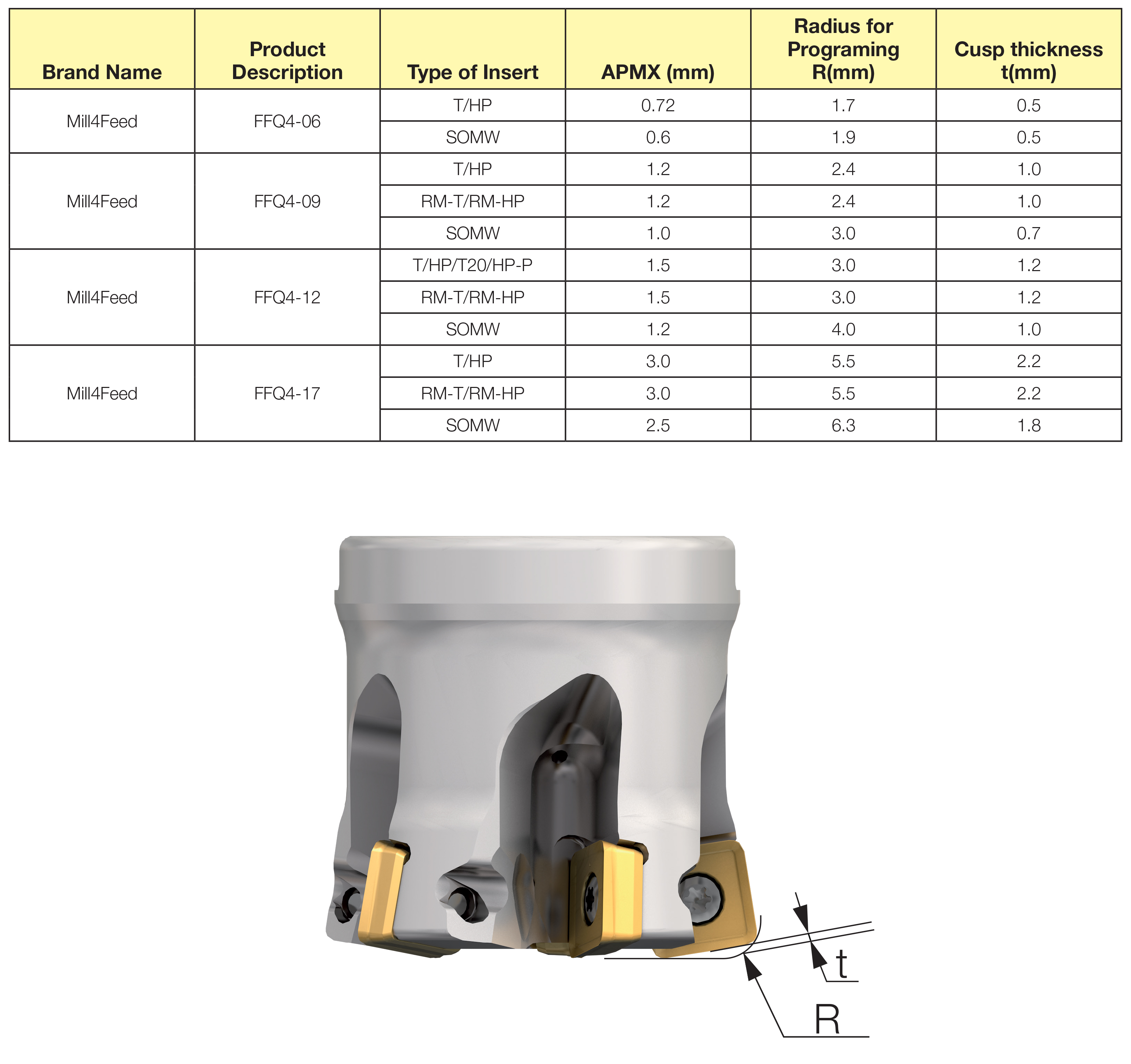

| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection. To generate a straight surface without cusps, the width of cut must not exceed DC. Radius for programing: for insert SOMT 1.7 mm, for insert SOMW 1.9 mm. When mounting insert SOMW, APMX=0.6 mm For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50%. |
Shipping Info
Package Weight
88
