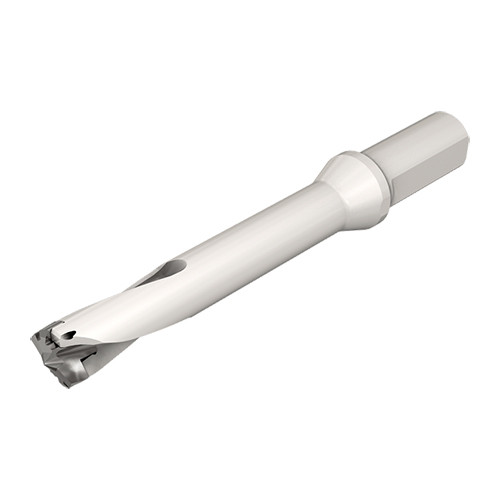

DCN 1260-275-125A-8D-BD

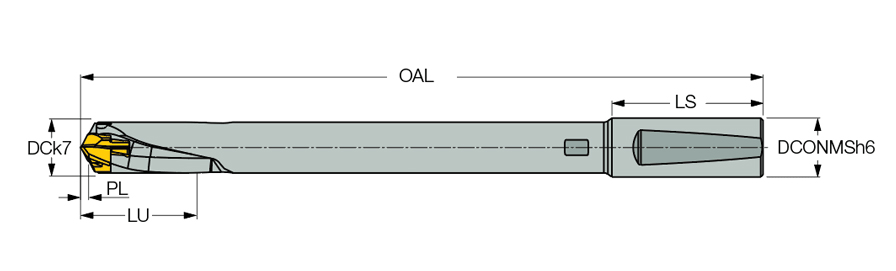

Drill; 1.26″ Dia. × 1.26″ Min. Dia. × 1.299″ Max. Dia. × 1-1/4″ Shank Dia. × 15.077″ OAL × 1.97″ LU × 2.36″ Shank Length ; Weldon Shank
| Cutting Diameter (DC) | 1.26″ | Functional Length (LF) | 12.561″ |
| Usable Length (LU) | 1.97″ | Overall Length (OAL) | 15.077″ |
| Shank Type | Weldon | Shank Length (LS) | 2.36″ |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Master Insert Identification (MIID) | IHP 320-BD |
| Insert Seat Size Code (SSC) | 32.0 | Point Length (PL) | 0.156″ |
| Cutting Diameter Minimum (DCN) | 1.26″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.299″ | Flange Diameter (DF) | 1.53″ |
| Protruding Length (LPR) | 12.715″ | Decimal Equivalent | 1.26″ |
Product Features
| Family Description | Exchangeable head drills with a reinforced body and a flat shank, diameter ratio 8xD, for construction beam industry. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
2256
