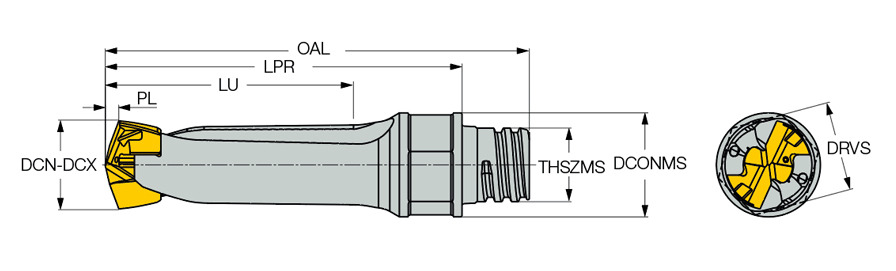

| Usable Length (LU) | 0.6303″ | Overall Length (OAL) | 1.472″ |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 0.378″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 7.0 | Master Insert Identification (MIID) | ICP 0295 |
| Cutting Diameter Minimum (DCN) | 0.295″ | Point Length (PL) | 0.0433″ |
| Cutting Diameter Maximum (DCX) | 0.315″ | Body Material | Steel |
| Protruding Length (LPR) | 1.224″ | Shank Diameter Tolerance (TCDMM) | $$$$ |
Product Features

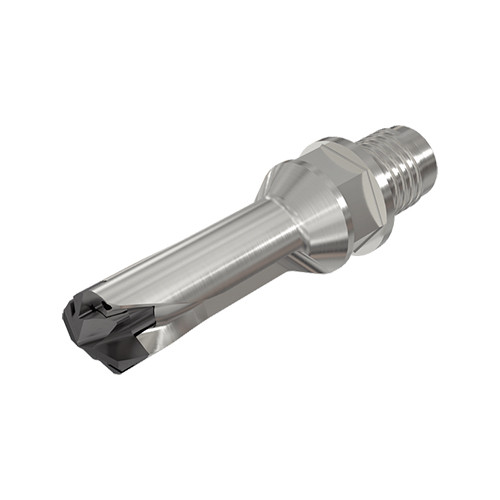

| Family Description | Modular SUMOCHAM drills are dedicated for Multi-Spindle and Swiss-Type machines with a MULTI-MASTER connection for easy adaptation and set up. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.071
