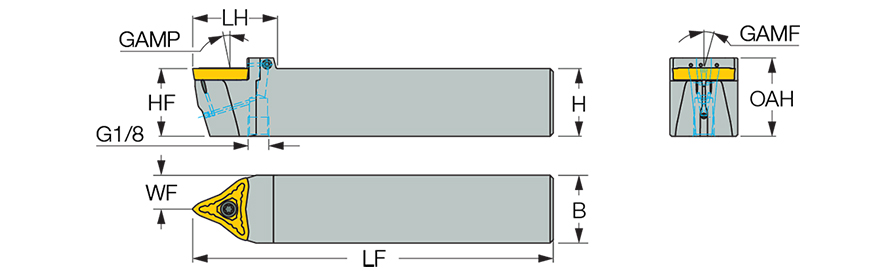

| Shank Height (H) | 32 mm | Master Insert Identification (MIID) | Q3-MCMT 1606#-R3#-SL |
| Shank Width (B) | 32 mm | Application | | High Feed and Diverse Turning Direction Applicatio | |
| Functional Length (LF) | 170 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 40 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 16 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 16 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
Product Features
| Family Description | 3 grooves on the pocket and a matching ridge on the insert bottom ensure a fixed position and high stability for machining at high feed rates. | Country of Origin | Israel |
Shipping Info
Package Weight
1357
