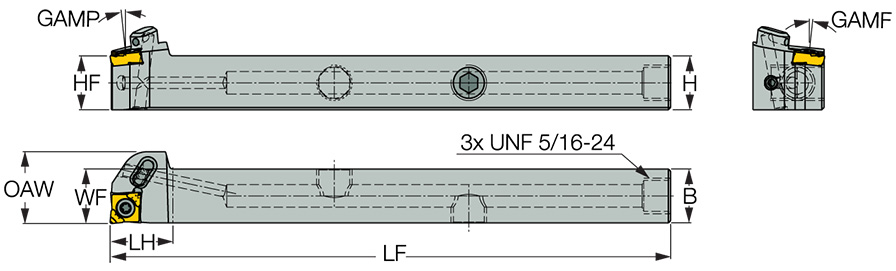

| Shank Height (H) | 10 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 10 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 14 mm | Body Material | Steel |
| Functional Width (WF) | 10.15 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 6.34 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features

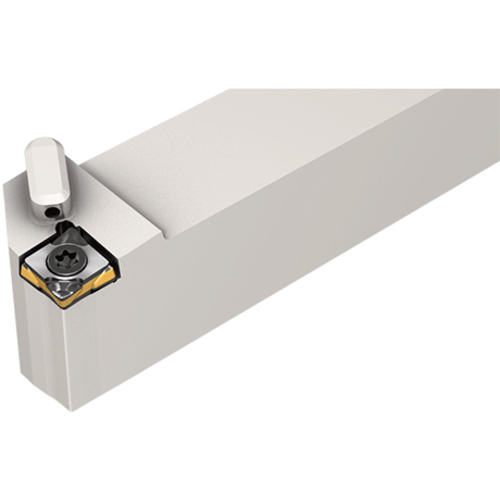

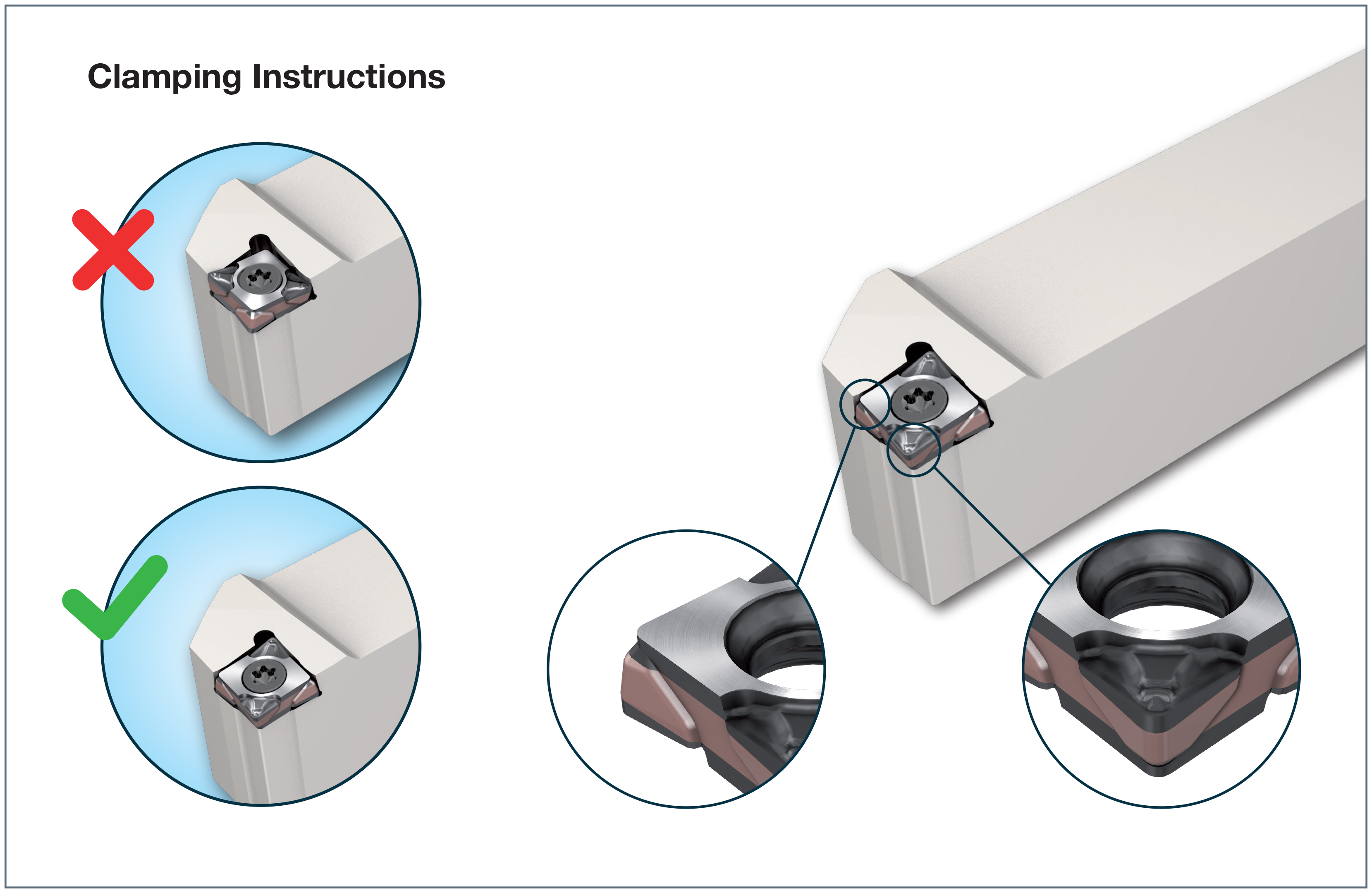

| Family Description | Screw lock tools with JETCUT coolant system carrying CXMU 80° rhombic inserts for swiss-type automatic lathes | Country of Origin | Israel |
Shipping Info
Package Weight
120
