| Overall Length (OAL) | 5.512″ | Master Insert Identification (MIID) | Q3-MCMT1606 |
| Functional Length (LF) | 3.937″ | Application | | High Feed and Diverse Turning Direction Applicatio | ISO 26623 1 (CAMFIX) | |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.63″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
Product Features

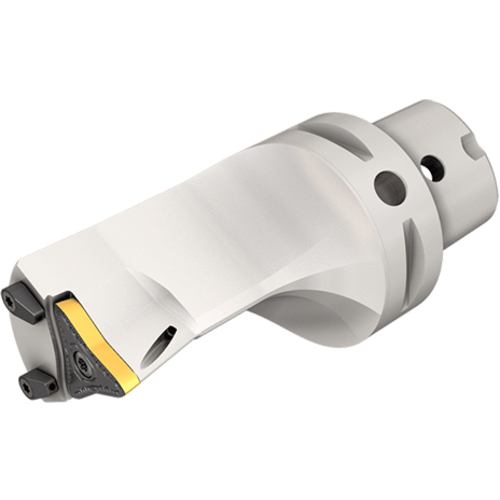

| Family Description | Y-Axis Turning Tools with safety lock clamping mechanism for positive inserts, 3 grooves on the pocket and a matching ridge at the insert bottom ensured fixed location and high stability at a very high feed rate. | Country of Origin | Israel |
| Remarks | For Depth of cut vs. position angle examples click on More Info A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, click on More Info. |
Shipping Info
Package Weight
1621
