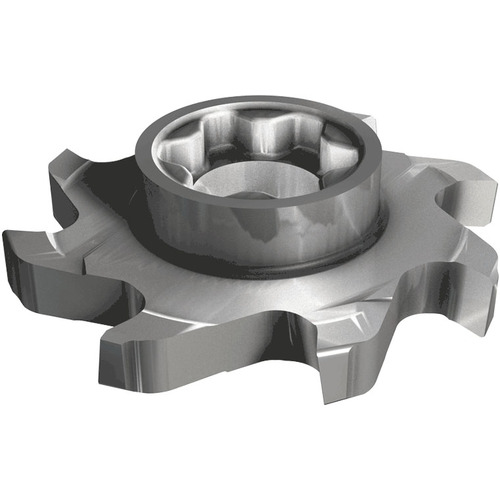

SD D1.00-H250D-SP13 IC908
End Mill Head; 0.988″ Dia. × 0.224″ Max Depth × 0.512″ Shank Dia. × 0.327″ OAL ; 6 FL ; Carbide ; TiAlN ; IC908

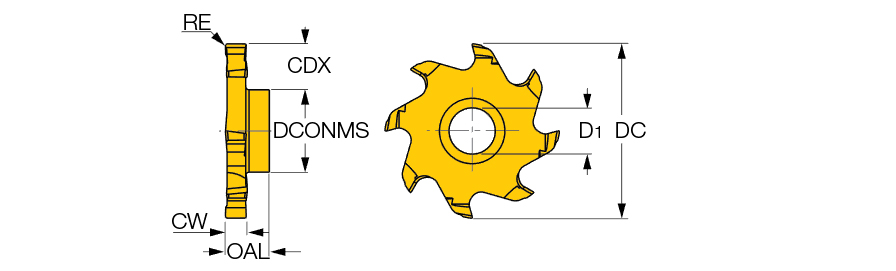

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 0.988″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.295″ |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.016″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.224″ | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 1/4″ | Tool Type | Solid "T" slot cutters |
| Connection Diameter Machine Side (DCONMS) | 0.512″ | Body Material | Carbide |
| Overall Length (OAL) | 0.327″ |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads. | Country of Origin | Israel |

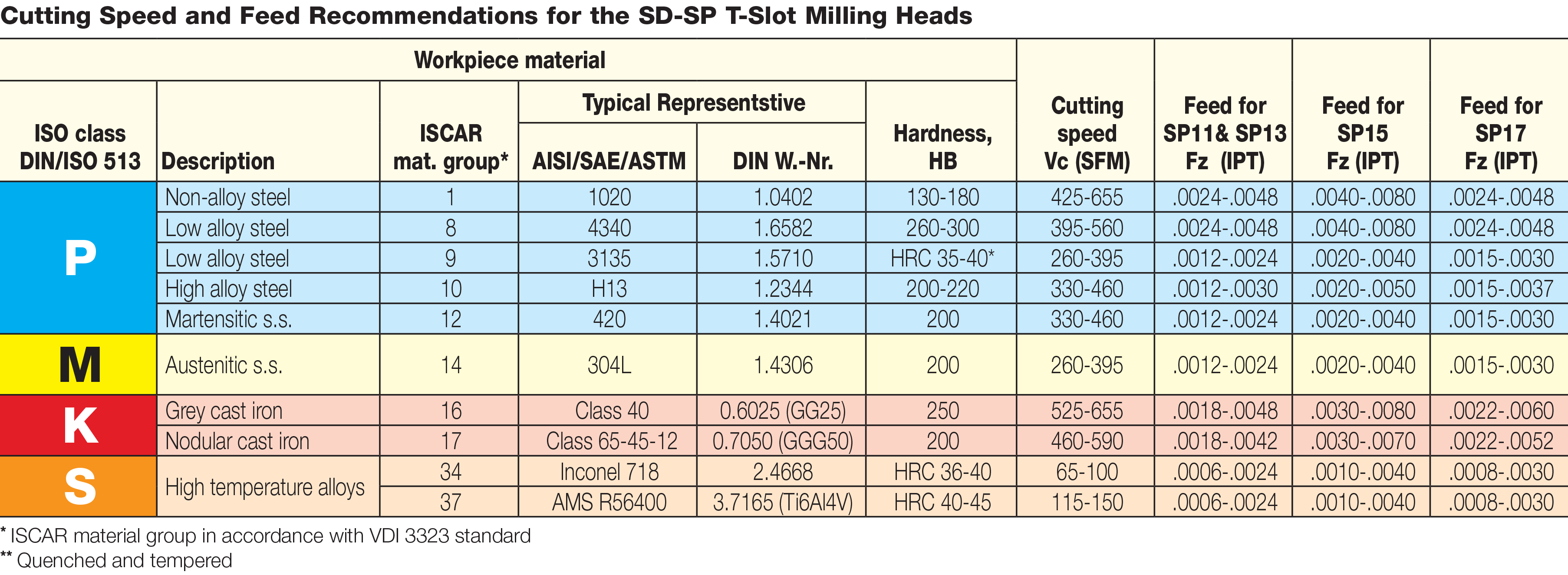

| Remarks | For machining recommendations, click on More Info |
