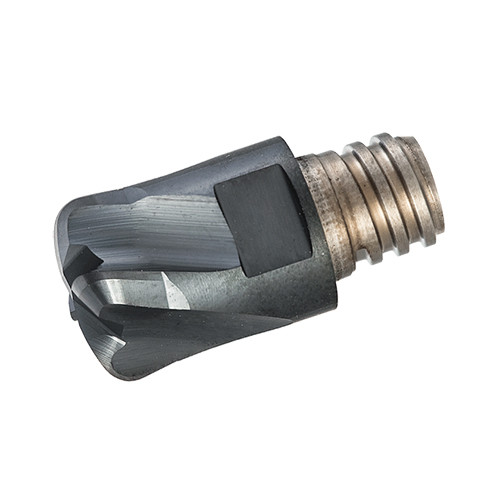

MM EFF080S2R0.86-6T05 IC903

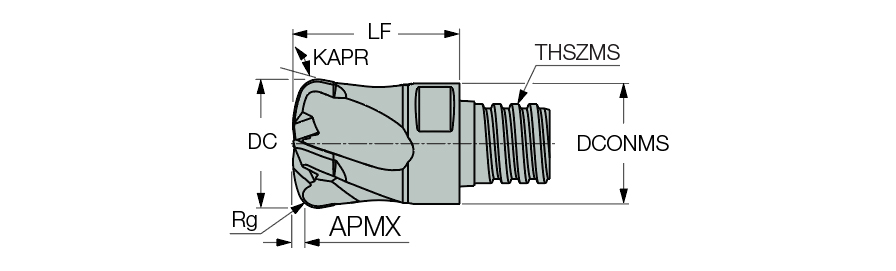

End Mill Head; 0.315″ Dia. × 0.016″ LOC × 0.295″ Shank Dia. × 0.673″ OAL ; 6 FL ; T05 ; Carbide ; AlTiN ; IC903
| Application | | Drill Mill | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Grade | IC903 |
| Cutting Diameter (DC) | 0.315″ | Coating | AlTiN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0197″ | Maximum Feed per Tooth (fz(max)) | 0.0189 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.315″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.016″ | Tool Type | Fast Feed Solid Endmill |
| Connection Diameter Machine Side (DCONMS) | 0.295″ | Body Material | Carbide |
| Functional Length (LF) | 0.394″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 0 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Overall Length (OAL) | 0.673″ |
Product Features
| Family Description | Interchangeable solid carbide FEEDMILL heads with 4 or 6 flute, for milling at very high feed and small D.O.C. | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection Heads with coolant supply are recommended for shouldering operations |
Shipping Info
Package Weight
14
