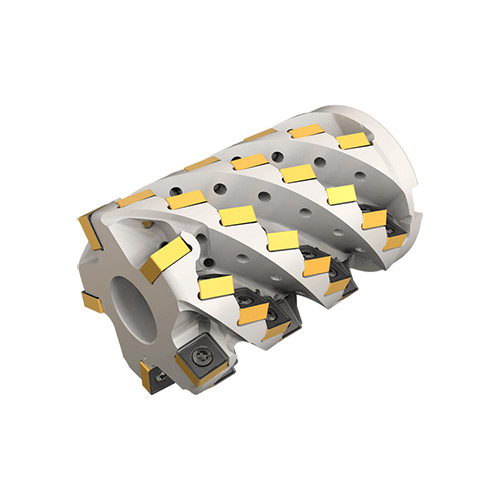

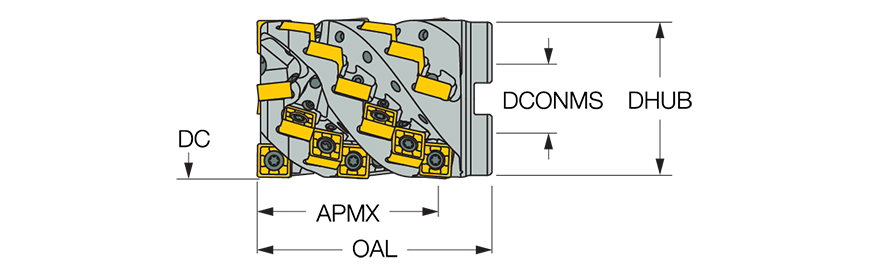

S890 SM D80-83-5-32-13
| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 40 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 83 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 80 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Flute Count (NOF) | 5 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 100 mm | Hub Diameter (DHUB) | 78 mm |
| Master Insert Identification (MIID) | S890 SNMU 130608 |
Product Features
| Family Description | Extended flute cutters carrying double-sided square inserts with 8 cutting edges | Country of Origin | Israel |
| Remarks | When using inserts with a corner radius of above 3.2mm, the pockets in the first row of the tool body should be modified to accommodate larger insert corners. For adaptation, click on More Info. |
Shipping Info
Package Weight
5.661
