ECK-H4M 12-24W12CFR.6-83C IC300

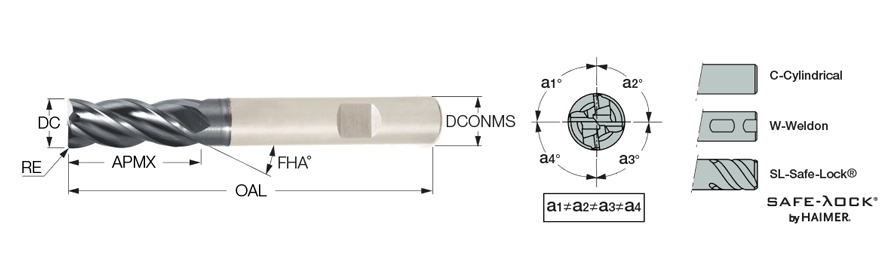

SQ End Mill; 12 mm Dia. × 24 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 24 mm | Grade | IC300 |
| Overall Length (OAL) | 83 mm | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Coating | TiCN | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 36 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Decimal Equivalent | 0.035″ |
| End Shape | Corner Radius | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Connection Code Machine Side (CCMS) | Weldon |
| Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
Product Features

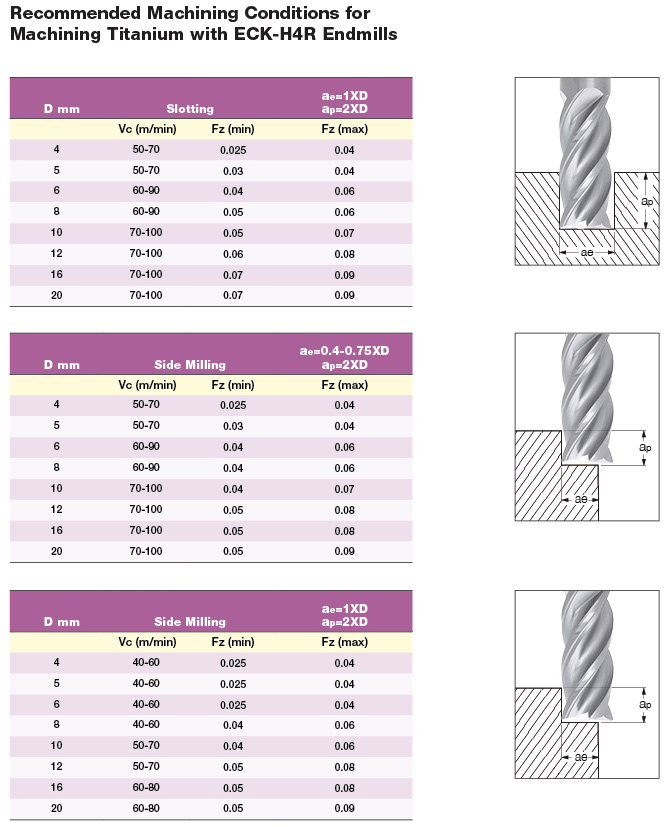

| Family Description | 4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter dampening with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD. | ItemRemark | With coolant channel |
| Country of Origin | Israel |
Shipping Info
Package Weight
0.255
