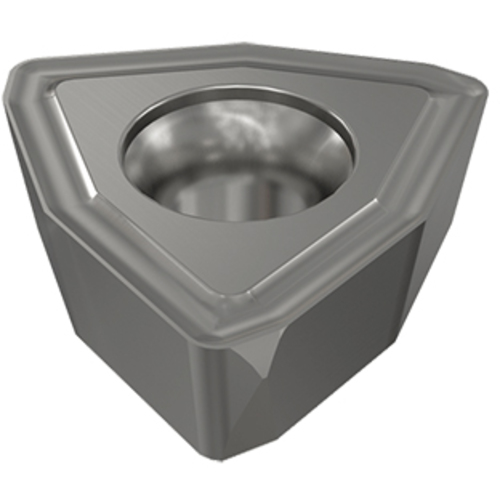

WCGX 06T308-W-DC IC918

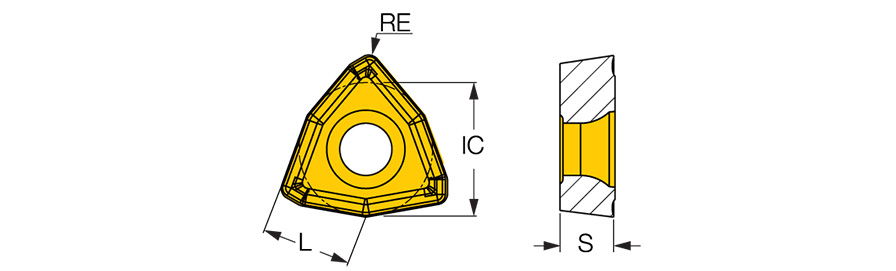

Drill Insert; 0.251″ Length × 0.15″ Thickness × 0.373″ IC × 0.0315″ Corner Radius ; 80 Degrees Included Angle ; Carbide ; TiAlN ; IC918
| Cutting Edge Length (L) | 0.251″ | Application | | Drilling | |
| Insert Thickness (S) | 0.15″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.373″ | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0315″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC918 |
Product Features
| Family Description | Precision ground trigon inserts are utilized in modular MNC drills to maintain a fine surface finish and achieve a tight hole diameter | Country of Origin | Israel |
Shipping Info
Package Weight
5
