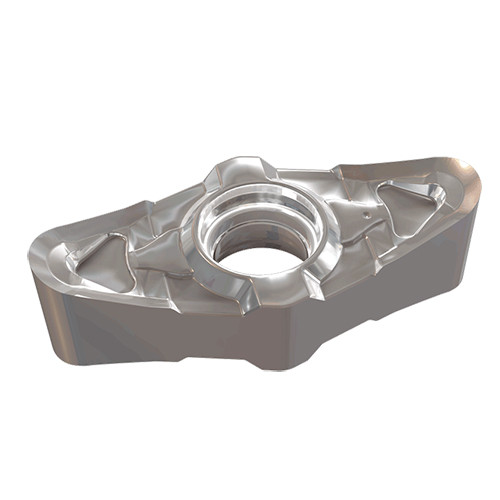

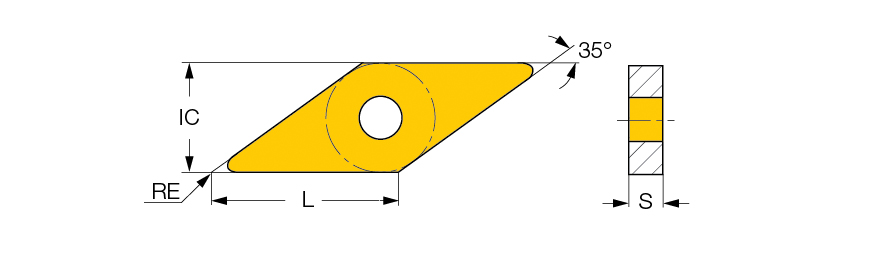

VNGU 220630-R3N IC1520
| Application | | Ext. 35° Diamond 107.5° Approac | Ext. 35° Diamond 72.5° Approac | Int. 35° Diamond 107.5°Approa | | Min D.O.C. | 0.059″ |
| Insert Style | VNGU | Depth of Cut Maximum (APMX) | 0.177″ |
| Corner Radius (RE) | 0.1181″ | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Size | 220 | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Cutting Edge Length (L) | 0.866″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | R3N |
| Grade | IC1520 | Measurement Type | Inch |
| Tool Type | Turn Negative Inserts | Body Material | Carbide |
Product Features
| Family Description | 35° rhombic, double-sided sharp edged positive and polished rake inserts. Used for rough machining on soft and non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
20
