| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 90° Square 75° Approach | Int. 80° Diamond 95° Approach | | Grade | IC20 |
| Insert Style | CXGG | Tool Type | Turn Negative Inserts |

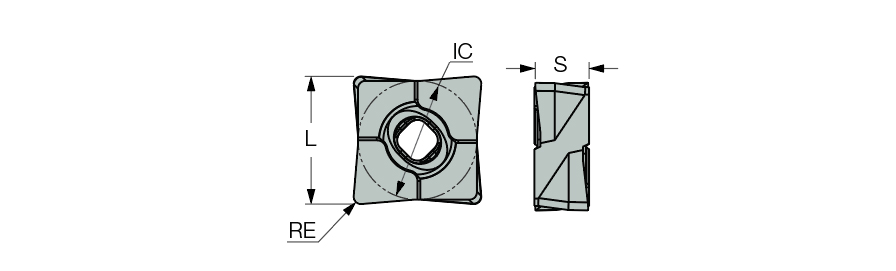

| Corner Radius (RE) | 0.0079″ | Min D.O.C. | 0.006″ |
| Insert Size | 090 | Depth of Cut Maximum (APMX) | 0.118″ |
| Cutting Edge Length (L) | 0.411″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Thickness (S) | 0.183″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Inscribed Circle Diameter (IC) | 0.368″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features

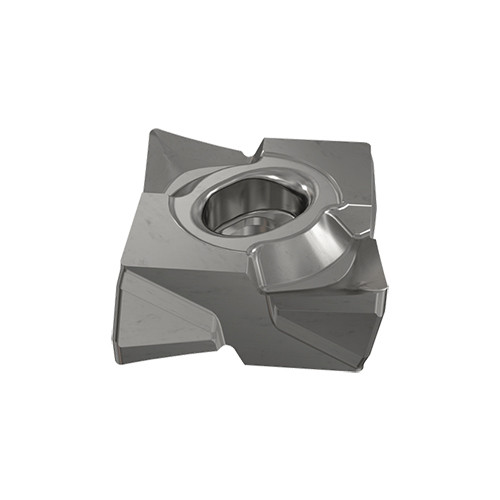

| Family Description | CXGG 80° double-sided positive and polished rake inserts with a highly positive round and sharp edge. To be used under medium machining conditions on aluminum alloys and other non-ferrous materials. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
6
