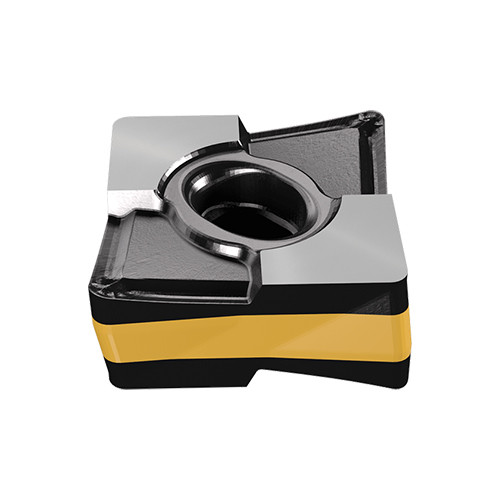

CXMG 12T512-M3P IC807
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC807 |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | CXMG | Min D.O.C. | 0.047″ |

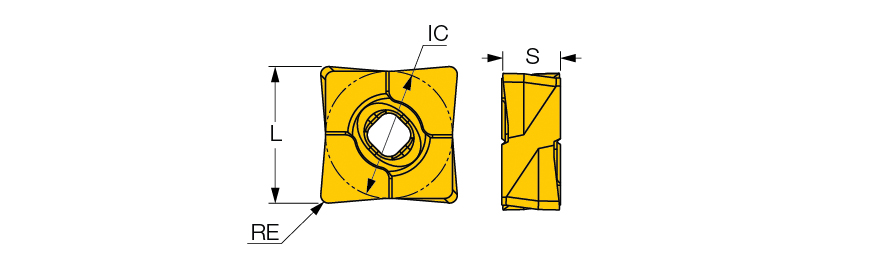

| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 12T | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 0.539″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Thickness (S) | 0.228″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 0.492″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN |
Product Features
| Family Description | 80° double-sided and double-positive rhombic inserts with a positive rake for medium machining on alloyed steel. Clamped in a dovetail rigid clamping pocket. Can be regarded as two positive inserts. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
12.8
