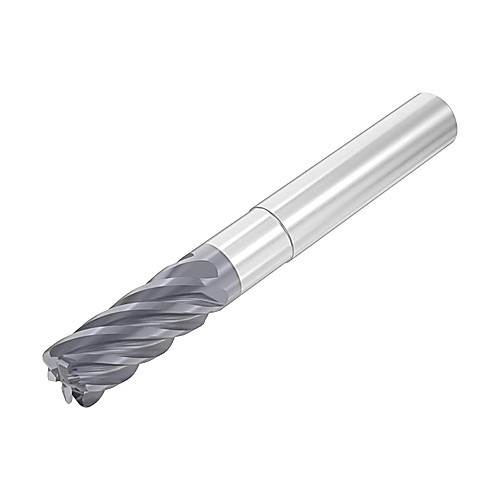

SN638R.500E2R060.0Z6, ALTIN CARB 1/2x1/2x1-1/8x4
SQ End Mill; 12.7 mm Dia. × 28.575 mm LOC × 12.7 mm Shank Dia. × 101.6 mm OAL ; 6 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 12.7 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12.7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 28.575 mm | Corner Radius (RE) | 1.524 mm |
| Overall Length (OAL) | 101.6 mm | Neck Length (LN) | 50.8 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.359
