1ZG3F-10040S1R02

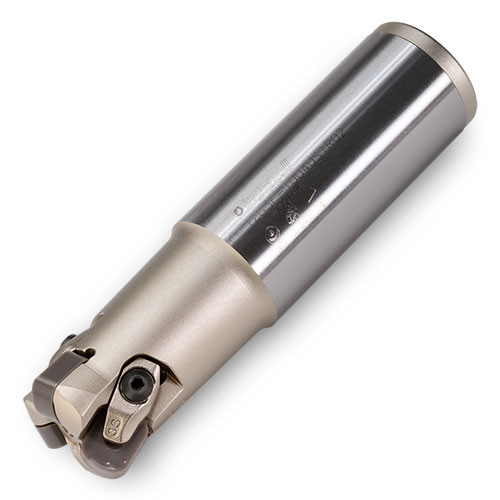

Indexable End Mill; 1″ Dia. × 0.06″ LOC × 1″ Shank Dia. × 4″ OAL × 1.6″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Corner Radius (RE) | 0.134″ |
| Cutting Diameter (DC) | 0.6″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.06″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0.7 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 1.763″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1″ |
| Usable Length (LU) | 1.6″ |
Product Features
| Family Description | .060″ Max. depth of cut Strong secure clamping Excellent high-feed performance & economy! | Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.804
