1KJ1B020030W4R00

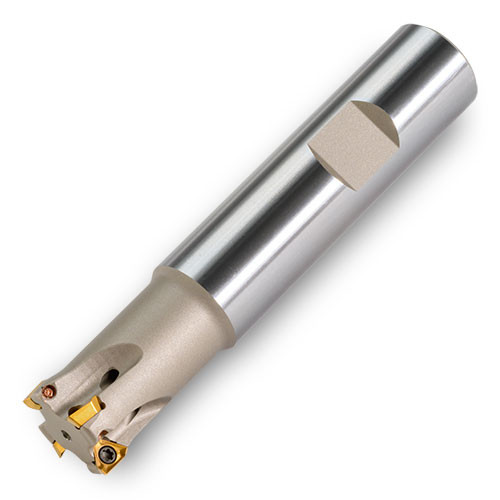

Indexable End Mill; 0.787″ Dia. × 0.138″ LOC × 0.787″ Shank Dia. × 3.543″ OAL × 1.181″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.787″ | Usable Length (LU) | 1.181″ |
| Cutting Diameter (DC) | 0.787″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.138″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3.543″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Protruding Length (LPR) | 1.575″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: 0.2, 0.4 mm R | Country of Origin | Germany |
Shipping Info
Package Weight
0.412
