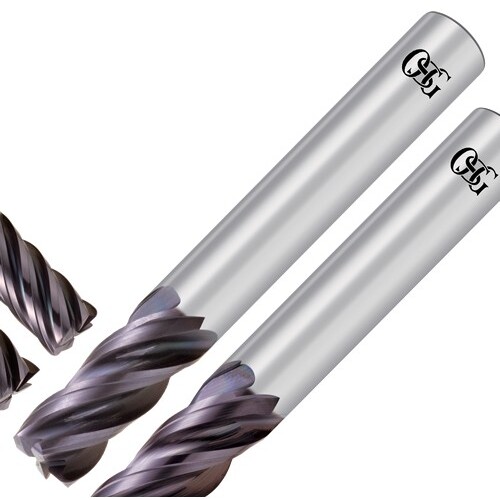

1/4″ Dia. × 1/4″ Shank × 3/8″ DOC × 2-1/2″ OAL, Carbide, TiAlN, 4 Flute, Variable Helix, Round, Corner Radius, Solid End Mill
SQ End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 2052
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | Single-End |
| Overall Length (OAL) | 2-1/2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 2052 |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.45000
Package Width
.75000
Package Weight
0.16
