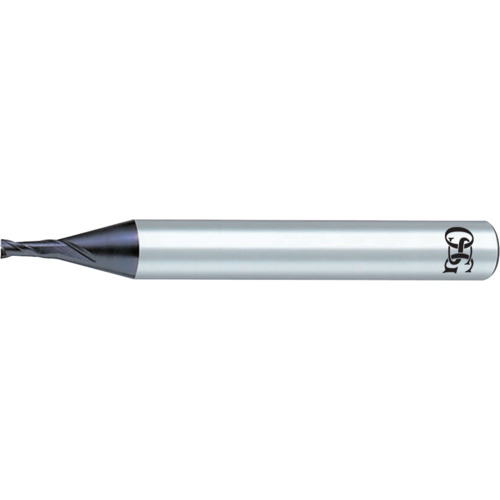

5 mm Dia. × 6 mm Shank × 13 mm DOC × 152 mm OAL, Carbide, Cr, 2 Flute, Corner Radius, Solid End Mill
Corner Radius End Mill; 5 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 152 mm OAL ; 2 FL ; Carbide ; CrN ; Series 3770
| Cutting Diameter (DC) | 5 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 105 mm |
| Depth of Cut Maximum (APMX) | 13 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 152 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | CrN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 3770 |
| Shank Type | Round |
Product Features
| Remarks | •Metric Solid Carbide Ball End Single End Mills •2 Flute TiN Coated •30° Helix | Country of Origin | Japan |
Shipping Info
Package Length
3.25000
Package Width
.45000
Package Weight
.0650
