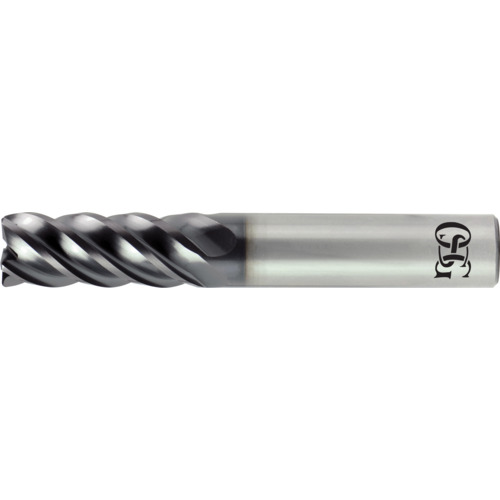

1/2″ Dia. × 1/2″ Shank × 1″ DOC × 3″ OAL, Carbide, TiAlN, 5 Flute, Variable Helix, Round, Corner Radius, Solid End Mill
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.03″ RE ; 5 FL ; Carbide ; AlTiN ; Series 2055
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 3″ | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 2055 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.45000
Package Width
.80000
Package Weight
0.28
