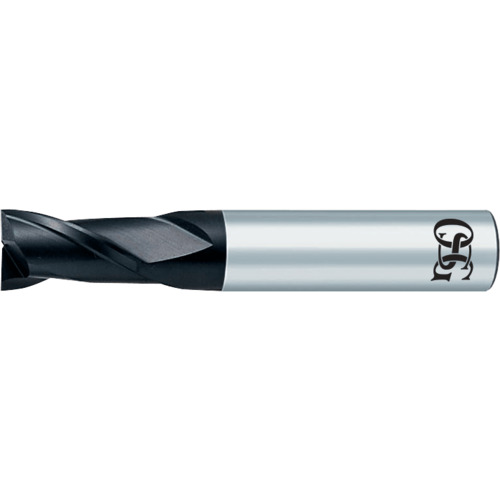

5/8″ Dia. × 5/8″ Shank × 1-7/8″ DOC × 102 mm OAL, Carbide, Cr, 2 Flute, Square, Solid End Mill
Square End Mill; 5/8″ Dia. × 1-7/8″ LOC × 5/8″ Shank Dia. × 102 mm OAL ; 2 FL ; Carbide ; CrN ; Series 3621
| Cutting Diameter (DC) | 5/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 0.75 mm |
| Depth of Cut Maximum (APMX) | 1-7/8″ | Tool Type | Center Cut |
| Overall Length (OAL) | 102 mm | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | CrN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 3621 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide 2-Flute Ball End Single End Mills | Country of Origin | Japan |
Shipping Info
Package Length
4.40000
Package Width
1.00000
Package Height
.90000
Package Weight
.5900
