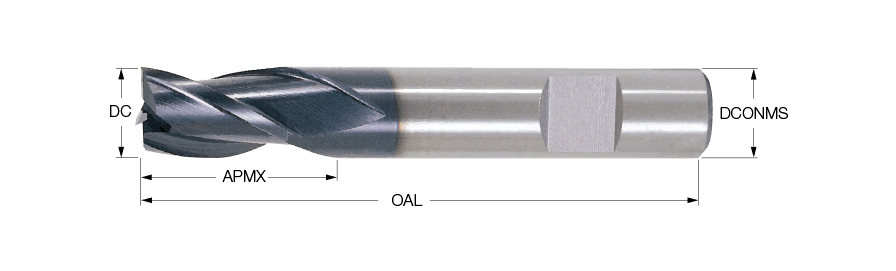

EH-A3 14-16W12-73 HS MPC
| Cutting Diameter (DC) | 14 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 0 Degrees |
| Depth of Cut Maximum (APMX) | 16 mm | Grade | MPC |
| Overall Length (OAL) | 73 mm | Tool Type | Solid Carbide Center Cutting Endmills 90 Degrees |
| Cutting Edge Material | HSS | Length Group | Short|Stub |
| Coating | TiN | Decimal Equivalent | 0.035″ |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | 3 flute, 30° helix, stub length HSS endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
.1540
