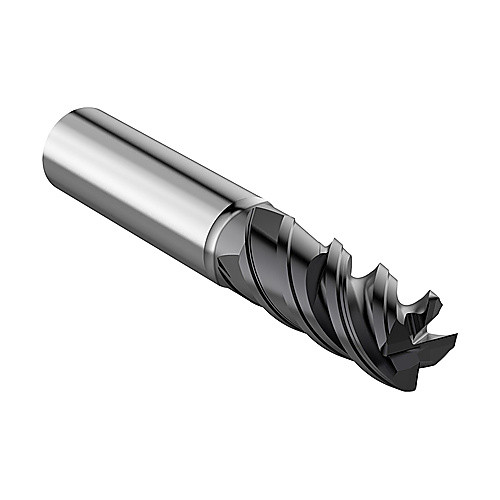

JS554250E2R600.3Z4-SIRA
SQ End Mill; 25 mm Dia. × 52 mm LOC × 25 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 25 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 52 mm | Neck Length (LN) | 65 mm |
| Overall Length (OAL) | 125 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.9844″ |
| Coating | SIRON-A | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | JS554 |
| Shank Type | Weldon | Corner Radius (RE) / Chamfer Width (CHW) | 6 mm |
| End Shape | Corner Radius |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.8
