SCS638R-0.625-D3-R030.0-Z

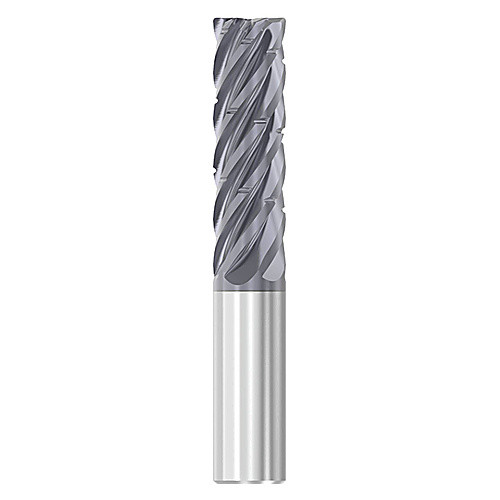

SQ End Mill; 15.875 mm Dia. × 50.8 mm LOC × 15.875 mm Shank Dia. × 101.6 mm OAL ; 0.762 mm RE ; 0.03″ RE ; 6 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 15.875 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 15.875 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 50.8 mm | Corner Radius (RE) | 0.762 mm |
| Overall Length (OAL) | 101.6 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.54
