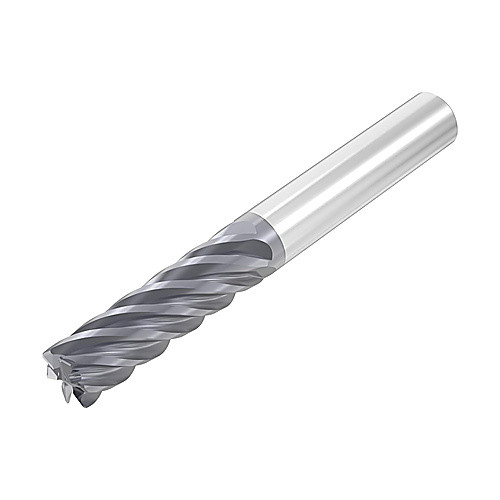

S638R.313D2R015.0Z6, ALTIN CARB 5/16x5/16x3/4x2
SQ End Mill; 7.938 mm Dia. × 19.05 mm LOC × 7.938 mm Shank Dia. × 50.8 mm OAL ; 0.381 mm RE ; 0.015″ RE ; 6 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 7.938 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 7.938 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 19.05 mm | Corner Radius (RE) | 0.381 mm |
| Overall Length (OAL) | 50.8 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.06
