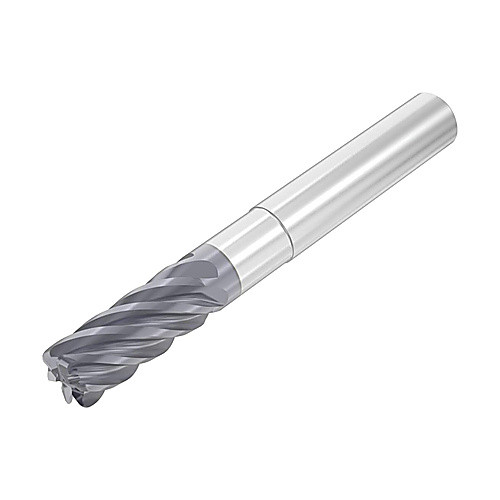

SN638R-0.375-E3-R015.0-Z6
SQ End Mill; 9.525 mm Dia. × 25.4 mm LOC × 9.525 mm Shank Dia. × 76.2 mm OAL ; 0.381 mm RE ; 0.015″ RE ; 6 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 9.525 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 9.525 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 25.4 mm | Corner Radius (RE) | 0.381 mm |
| Overall Length (OAL) | 76.2 mm | Neck Length (LN) | 38.1 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.161
